Moxa

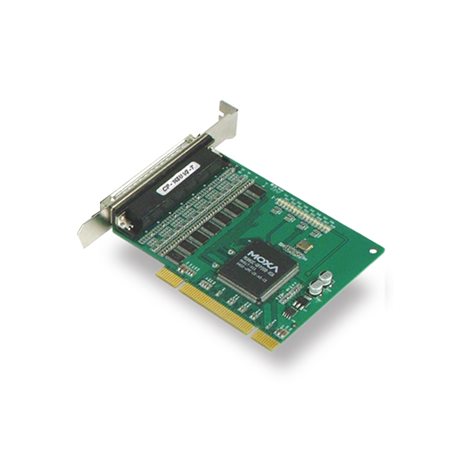

MOXA CP-168U-T Serial Expansion Module

$431.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

8 x RS-232 Serial ports (DB62 female connector)
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Compatible Driver with Windows, Linux, and UNIX
-40 to 85°C Operating Temperature

View full details

Description

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3 V and 5 V PCI buses, allowing the board to be installed in virtually any available PC server.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 8
Bus interface: 32-bit Universal PCI
Serial Standards: RS-232
Connector: DB62 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Multiport Serial Boards: Power Requirements
Input Current: 180 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 280,854 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 82 x 120 mm (3.22 x 4.72 in)
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)

Tags:
Industrial Edge Connectivity, Multiport Serial Boards, PCIe/UPCI/PCI Serial Cards
