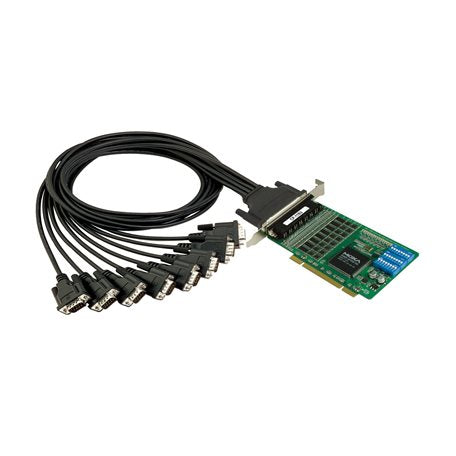

MOXA CP-138U PCI SERIAL BOARD

MOXA CP-138U PCI SERIAL BOARD

$562.00 CAD
$562.00 CAD
Sale Sold out

Features and Benefits

  • 8 x RS-422/485 Serial Ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • Compatible with 3.3/5 V Universal PCI and PCI-X slots
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Compact design for space-constrained applications
View full details

Description

MOXA CP-138U Introduction
The CP-118U and CP-138U are smart, 8-port Universal PCI serial boards designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. Both boards are compatible with all major operating systems. In addition, the CP-118U’s 8 RS-232/422/485 ports and the CP-138U’s 8 RS-422/485 ports support data rates up to 921.6 kbps and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. The CP-118U and CP-138U support both 3.3V and 5V PCI buses, making them suitable for installation in most PC servers.

You can also find the CP-118U-I-T and CP-138U-I-T models in the CP-118U/138U Series.

Data sheet

Specification

Multiport Serial Boards: Serial Interface

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 8
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-422, RS-485
Connector: DB62 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Multiport Serial Boards: Power Requirements
Input Current: 135 mA @ 5 VDC (RS-422)
Multiport Serial Boards: General
MTBF: 1,147,210 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 82 x 135 mm (3.22 x 5.31 in)
Operating Temperature: 0 to 55°C
Operation Humidity: 5 to 95% (non-condensing)
