Moxa

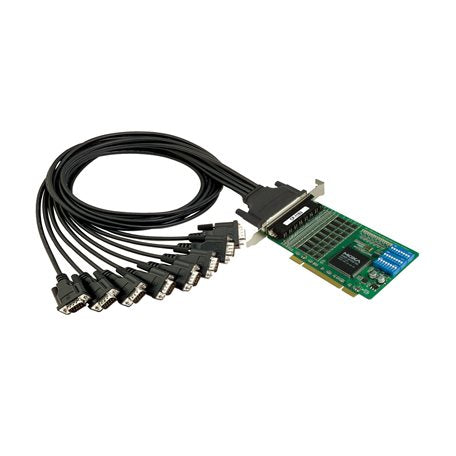

MOXA CP-138U-I PCI SERIAL BOARD

$1,296.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

8 x RS-422/485 Serial Ports
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip hardware/software flow control
2.5 kV optical isolation for reliable industrial communication
Compatible with 3.3/5 V Universal PCI and PCI-X slots
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
Compact design for easy integration into industrial applications

View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 8
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-422, RS-485
Connector: DB62 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Multiport Serial Boards: Power Requirements
Input Current: 135 mA @ 5 VDC (RS-422)
Multiport Serial Boards: General
MTBF: 1,147,210 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 82 x 135 mm (3.22 x 5.31 in)
Operating Temperature: 0 to 55°C
Operation Humidity: 5 to 95% (non-condensing)
