Moxa

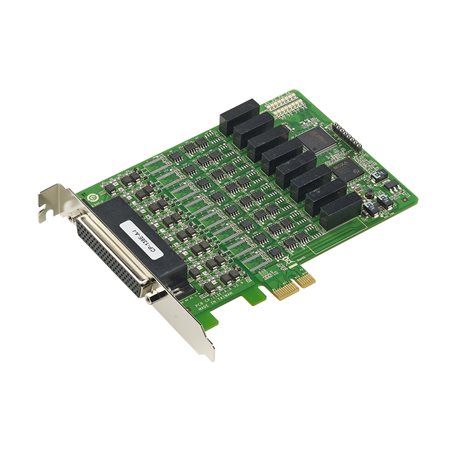

MOXA CP-138E-A-I WITHOUT CABLE PCI EXPRESS SERIAL BOARD

$1,228.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

8 x RS-232/422/485 Serial Ports
PCI Express 1.0 compliant
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip hardware/software flow control
2.5 kV optical isolation for enhanced reliability
Drivers provided for a broad selection of operating systems, including Windows and Linux
Wide operating temperature range: -40 to 75°C

View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C compatible
Number of Ports: 8
Bus Interface: PCI Express 1.0
Serial Standards: RS-232/422/485
Connector: DB78 female
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Multiport Serial Boards: Power Requirements
Power Requirement: 2,356 mA @ 3.3 VDC
Multiport Serial Boards: General
MTBF: 390,883 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 107 x 136.9 mm (4.21 x 5.39 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
