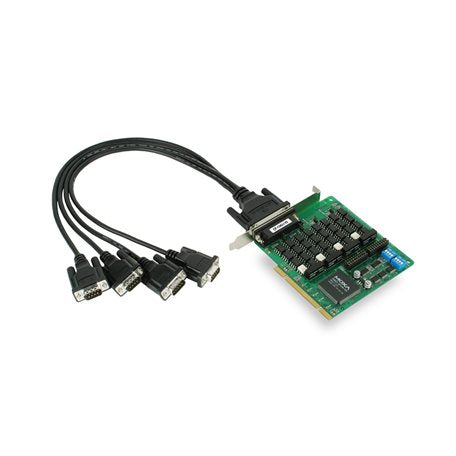

MOXA CP-134U-I W/O CABLE PCI SERIAL BOARD

$1,016.00 CAD

Special Offer Out of Stock

Product variants

MOXA CP-134U-I W/O CABLE UPCI SERIAL BOARD

Features and Benefits

2 x RS-232/422/485, 2 x RS-422/485 Serial Ports
Over 700 kbps data throughput for top performance
921.6 kbps maximum baudrate for fast data transmission
ADDC® provides automatic data direction control for RS-485 signals
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5 V PCI and PCI-X
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
Ports 1 and 2 support RS-232 and RS-422/485

View full details

Description

Data sheet

Specification

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 4
Bus Interface: 32-bit Universal PCI
Serial Standards: 2 x RS-232/422/485, 2 x RS-422/485
Connector: DB44 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Requirement: 180 mA @ 5 VDC
MTBF: 480,209 hrs
Dimensions: 82.5 x 120 mm (3.24 x 4.72 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
