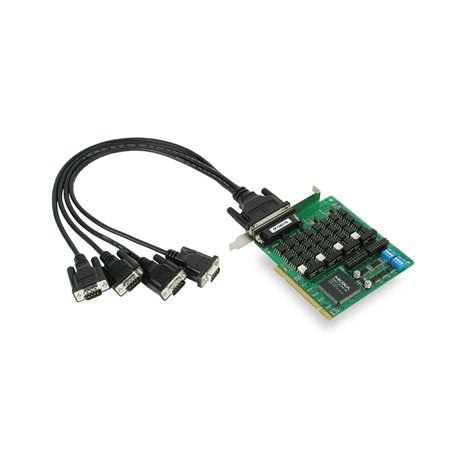

MOXA CP-134U-I-DB9M PCI SERIAL BOARD

MOXA CP-134U-I-DB9M PCI SERIAL BOARD
$1,036.00 CAD
$1,036.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 4 x RS-232/422/485 Serial Ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • 2.5 kV optical isolation for reliable industrial communication
  • Compatible with 3.3/5 V Universal PCI and PCI-X slots
  • DB9 male connectors for easy integration
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Compact form factor for easy installation
View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 4
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232, RS-422, RS-485
Connector: DB44 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Multiport Serial Boards: Power Requirements
Power Requirement: 180 mA @ 5 VDC
