Moxa

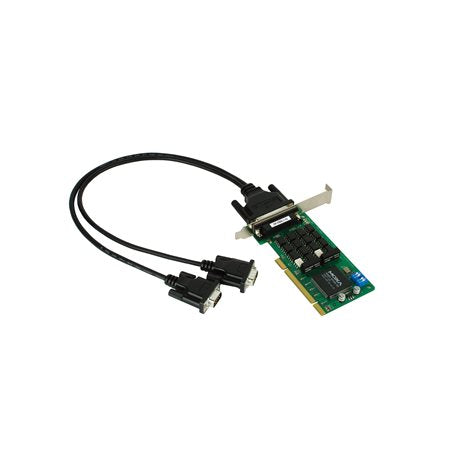

MOXA CP-132UL-I-DB9M PCI SERIAL BOARD

MOXA CP-132UL-I-DB9M PCI SERIAL BOARD

Regular price $400.00 CAD
Regular price Sale price $400.00 CAD
Sale Sold out
We have 44 in stock

Features and Benefits

  • Over 800 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • ADDC® provides automatic data direction control for RS-485 signals
  • Transmit data up to 1.2 km with RS-422/485
  • Wide-temperature model available for -40 to 85°C environments
View full details

Description

The CP-132UL and CP-132UL-I are 2-port Universal PCI boards designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution. RS-485 communication requires precise timing control to enable and disable the line driver. Our Turbo Serial Engine™ chip that powers the CP-132UL/UL-I boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The CP-132UL/UL-I Universal PCI boards have two RS-422/485 serial ports, both of which can achieve data rates of up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132UL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.

Specification

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 2
Bus Interface: 32-bit Universal PC
Serial Standards: RS-422, RS-485
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Input Current: 490 mA @ 5 VDC
MTBF: 1,647,832 hrs
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
