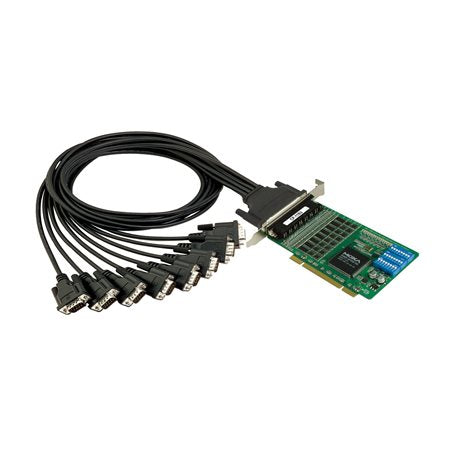

MOXA CP-118U-T UPCI SERIAL BOARD

MOXA CP-118U-T UPCI SERIAL BOARD

$717.00 CAD
$717.00 CAD
Sale Sold out

Features and Benefits

  • 8 x RS-232/422/485 Serial Ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • 2.5 kV optical isolation for industrial-grade reliability
  • Compatible with 3.3/5 V Universal PCI and PCI-X slots
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide operating temperature range: -40 to 85°C
View full details

Description

Moxa's dedication to being a trusted provider of serial connectivity is demonstrated by our long-term commitment to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial boards are built for industrial applications, and include models that can operate reliably in a wide temperature range.

Data sheet

Specification

CP-1Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB78 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 8
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Isolation: 2 kV
Serial Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters
Input Current: 20 mA @ 5 VDC
Physical Characteristics
Dimensions: 82 x 135 mm (3.22 x 5.31 in)
LED Interface: Built-in Tx, Rx LEDs for each port
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
Declaration
Gre
MTBF
Time: 1,073,385 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty18U-I-T
