Moxa

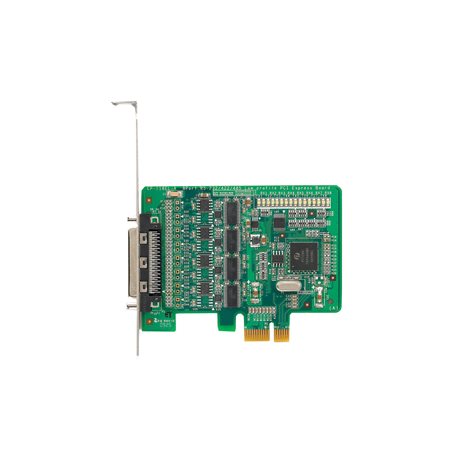

MOXA CP-118EL-A W/O CABLE PCI EXPRESS SERIAL BOARD

MOXA CP-118EL-A W/O CABLE PCI EXPRESS SERIAL BOARD

Regular price $592.00 CAD
Regular price Sale price $592.00 CAD
Sale Sold out

Features and Benefits

  • 8 x RS-232/422/485 Serial Ports
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Variety of connection cables and boxes available for RS-232/422/485
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View full details

Description

The CP-118EL-A is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight serial ports can be configured independently for RS-232, RS-422, or RS-485 (either 2-wire or 4-wire), and the ports supports a fast 921.6 kbps baudrate. The CP-118EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

The CP-118EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Moxa continues to support a wide variety of operating systems, and the CP-118EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Specification

Comm. Controller: 16C550C compatible
Number of Ports: 8
Bus Interface: PCI Express 1.0
Serial Standards: RS-232, RS-422, RS-485
Connector: VHDCI 68
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Power Requirement: 1,285 mA @ 3.3 VDC
MTBF: 1,359,482 hrs
Dimensions: 68.9 x 88 mm (2.71 x 3.46 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
