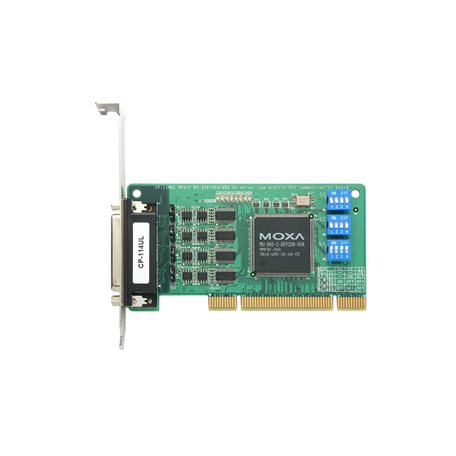

MOXA CP-114UL-I-DB9M UPCI SERIAL BOARD

MOXA CP-114UL-I-DB9M UPCI SERIAL BOARD

$750.00 CAD
$750.00 CAD
Sale Sold out

Features and Benefits

  • Over 700 kbps data throughput for top performance
  • 128-byte FIFO and on-chip hardware and software flow control
  • Universal PCI compatibility with 3.3/5 V PCI and PCI-X
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers available for a broad selection of operating systems, including Windows and Linux
  • Easy maintenance with built-in LEDs
  • Wide-temperature model available for -40 to 85°C environments
View full details

Description

MOXA CP-114UL-DB9M Introduction
Moxa’s CP-114UL/UL-I Series of multiport serial boards are designed to be used by industrial automation system integrators for long-distance, multi-point, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-114UL/UL-I boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protections are available to prevent equipment damage.

Moxa continues to support a wide variety of operating systems, and the CP-114UL/UL-I boards are no exception. Reliable Windows and Linux/ UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 4
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232, RS-422, RS-485
Connector: DB44 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Multiport Serial Boards: Power Requirements
Power Requirement: 320 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 114,223 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
Standards and Certifications: EMC, EMI, EMS, KC, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
