Moxa

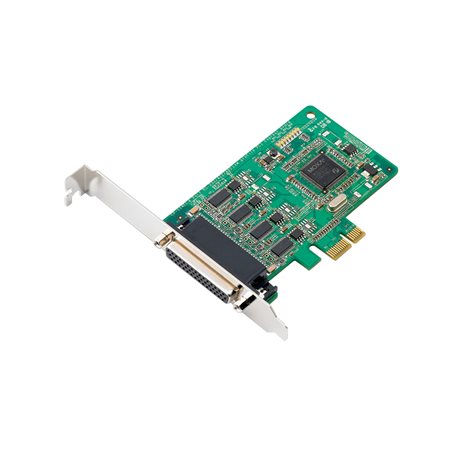

MOXA CP-114EL-I-DB25M Serial Expansion Module

MOXA CP-114EL-I-DB25M Serial Expansion Module

$862.00 CAD
$862.00 CAD
Sale Sold out

Features and Benefits

  • 4 x RS-232/422/485 Serial Ports (DB25 female connector)
  • Supports maximum 921.6 kbps baud rate
  • 2KV isolation protection for serial ports
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible Driver with Windows, Linux, and UNIX
  • -40 to 85°C Operating Temperature
View full details

Description

The CP-114EL Series of smart, 4-port PCI Express boards designed for POS and ATM applications are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and UNIX. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a fast 921.6 kbps baudrate. The CP-114EL Series provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express x1 classification allows the boards to be installed in any PCI Express slot.

Data sheet

Specification

Comm. Controller: 16C550C compatible
Bus: PCI Express 1.0
Connector: DB44 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 4
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Isolation: CP-114EL-I Series: 2 kV
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters
Input Current:
CP-114EL Series: 835 mA @ 3.3 VDC
CP-114EL-I Series: 1,170 mA @ 3.3 VDC

Physical Characteristics
Dimensions:
CP-114EL Series: 67.21 x 103 mm (2.65 x 4.06 in)
CP-114EL-I Series: 67.21 x 135 mm (2.65 x 5.31 in)

LED Interface
LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Declaration
Green Product: RoHS, CRoHS, WEEE

MTBF
Time:
CP-114EL Series: 2,347,197 hrs
CP-114EL-I Series: 603,671 hrs
Standards: Telcordia (Bellcore) Standard TR/SR

Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
