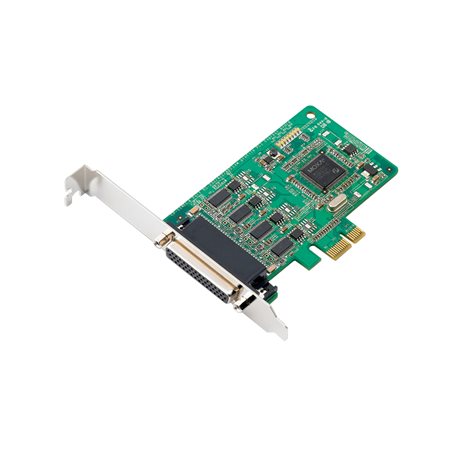

MOXA CP-114EL CABLE PCI EXPRESS SERIAL BOARD

MOXA CP-114EL CABLE PCI EXPRESS SERIAL BOARD
$517.00 CAD
$517.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 4 x RS-232/422/485 Serial Ports
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C compatible
Number of Ports: 4
Bus Interface: PCI Express 1.0
Serial Standards: RS-232, RS-422, RS-485
Connector: DB44 female
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Multiport Serial Boards: Power Requirements
Power Requirement: 835 mA @ 3.3 VDC
Multiport Serial Boards: General
MTBF: 2,347,197 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
