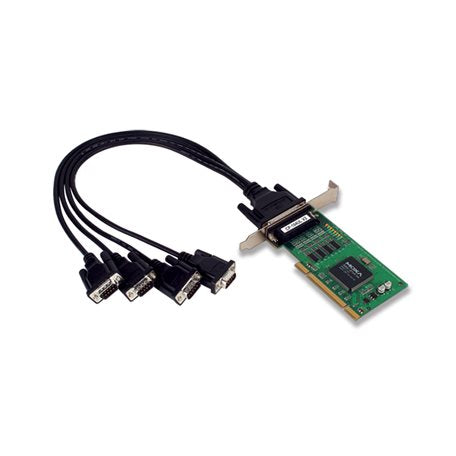

MOXA CP-104UL-T UNIVERSAL PCI SERIAL BOARD

MOXA CP-104UL-T UNIVERSAL PCI SERIAL BOARD

Regular price $240.00 CAD
Regular price Sale price $240.00 CAD
Sale Sold out
We have 2 in stock

Features and Benefits

  • 4 x RS-232 Ports with DB44 female connector
  • 32bit PCI Bus
  • Input power 5V DC, 0.12A
  • Compatible with PCI and PCI-X cards with 3.3/5 V
  • -40 to 85°C operating temperature
View full details

Description

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.

You can also find the CP-104JU, CP-104UL-DB9M and CP-104JU-T models in the CP-104UL/104JU Series.

Specification

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 4
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232
Connector: DB44 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Input Current: 120 mA @ 5 VDC
MTBF: 558,961 hrs
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
