Moxa

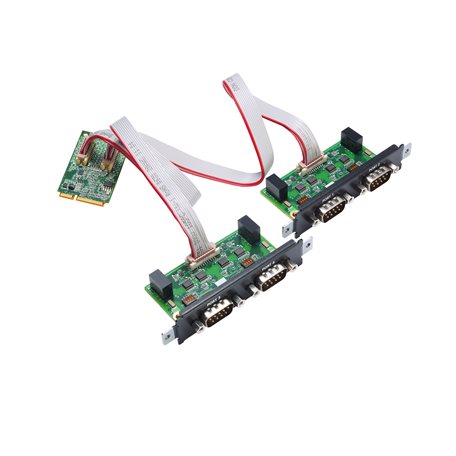

MOXA CP-104N-I-T CABLE PCI EXPRESS SERIAL BOARD

MOXA CP-104N-I-T CABLE PCI EXPRESS SERIAL BOARD
$931.00 CAD
$931.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 2.5 kV Serial Interface Isolation
  • 4 x RS-232 Serial Ports
  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C compatible
Number of Ports: 4
Bus Interface: Mini PCI Express
Serial Standards: RS-232
Connector: DB9 male
Baudrate: 50 bps to 921.6 kbps (supports non-standard baud rates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Linux Drivers: Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: None

Multiport Serial Boards: Power Requirements
Power Requirement: Input Current: 615 mA @ 3.3 VDC

Multiport Serial Boards: General
MTBF: 2,189,472 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 30 x 50.95 mm (1.18 x 2 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
