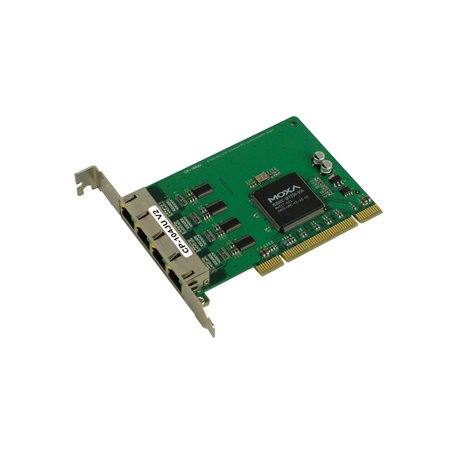

MOXA CP-104JU-T Serial Expansion Module

$286.00 CAD

Sale Out of Stock

Product variants

Features and Benefits

Over 800 kbps data throughput for top performance
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5 V PCI and PCI-X
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
Wide-temperature model available for -40 to 85°C environments

View full details

Description

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.

Data sheet

Specification

Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 4
Bus interface: 32-bit Universal PCI
Serial Standards: RS-232
Connector: 4 x RJ45
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded, CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Requirements
Input Current: 135 mA @ 5 VDC

General
MTBF: 571,627 hrs

Physical Characteristics
Dimensions: 83 x 120 mm (3.27 x 4.72 in)

Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class B
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

Storage Temperature
-40 to 85°C (-40 to 185°F)

Operation Humidity
5 to 95% (non-condensing)
