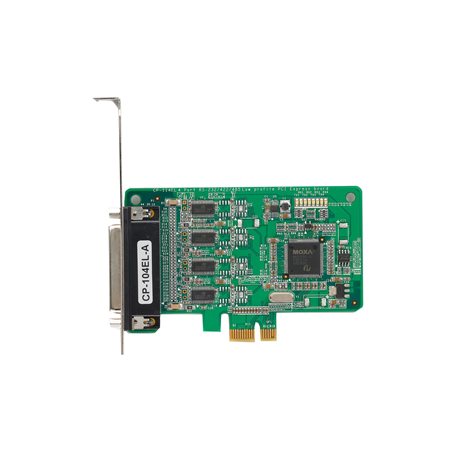

MOXA CP-104EL-A-DB25M Serial Expansion Module

MOXA CP-104EL-A-DB25M Serial Expansion Module

Regular price $320.00 CAD
Regular price Sale price $320.00 CAD
Sale Sold out

Features and Benefits

  • Included Cable: CBL-M44M25x4-50
  • 4 x RS-232 low profile PCI Express
  • 0 to 55°C Operating Temperature
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low profile form factor fits small-sized PCs
  • Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/ › x64), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64) FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7
  • Easy maintenance with on-board LEDs and management software
  • 15 KV ESD protection on the board
View full details

Description

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

Specification

CP-104EL-A-DB25MSerial Interface
Comm. Controller: 16C550C compatible
Bus: PCI Express 1.0
Connector: DB44 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 4
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals: RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features
Linux Drivers:
Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
Windows Drivers:
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
UNIX Drivers:
QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters
Input Current: 805 mA @ 3.3 VDC

Physical Characteristics
Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)
LED Interface: Built-in Tx, Rx LEDs for each port

Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (Package Included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Declaration
Green Product: RoHS, CRoHS, WEEE

MTBF
Time: 3,601,447 hrs
Standards: Telcordia (Bellcore) Standard TR/SR

Warranty
Warranty Period: 5 years
