Moxa

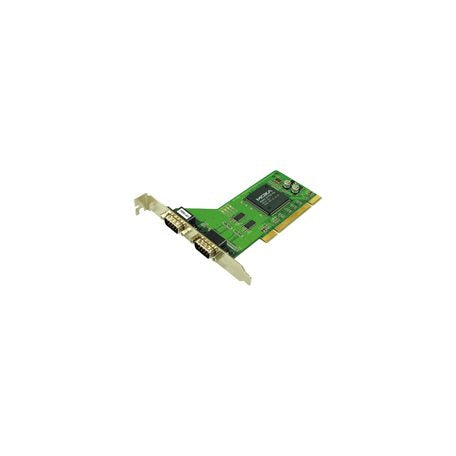

MOXA CP-102UL-T Serial Expansion Module

$182.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Excellent data throughput at over 800 kbps
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5 V PCI and PCI-X
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
MD1 low-profile form factor (CP-102UL) fits compact PCs
Wide-temperature model available for -40 to 85°C environments

View full details

Description

The CP-102U and CP-102UL are 2-port universal PCI boards designed for POS and ATM applications. They are designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and even UNIX. In addition, each RS-232 serial port supports up to 921.6 kbps baudrate. The CP-102U and CP-102UL implement full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any PC.

Data sheet

Specification

Multiport Serial Boards: Serial Software Features
Windows Drivers:
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers:
Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers:
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Multiport Serial Boards: Power Requirements
Power Requirement: 93 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 576,401 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 64.5 x 120 mm (2.53 x 4.72 in)

Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Storage and Environmental Limits
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
