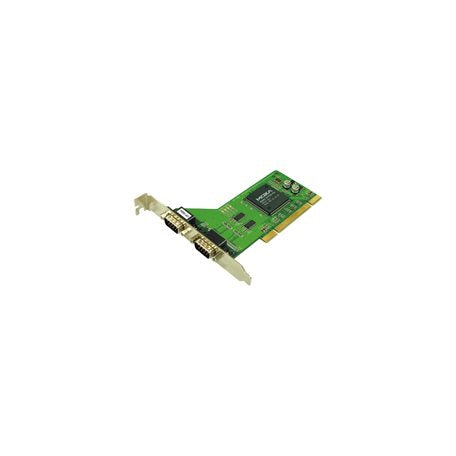

MOXA CP-102U-T Serial Expansion Module

MOXA CP-102U-T Serial Expansion Module

$165.00 CAD
$165.00 CAD
Sale Sold out

Features and Benefits

  • Excellent data throughput at over 800 kbps
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • MD1 low-profile form factor (CP-102UL) fits compact PCs
  • Wide-temperature model available for -40 to 85°C environments
View full details

Description

The CP-102U and CP-102UL are 2-port universal PCI boards designed for POS and ATM applications. They are designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and even UNIX. In addition, each RS-232 serial port supports up to 921.6 kbps baudrate. The CP-102U and CP-102UL implement full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any PC.

Data sheet

Specification

Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: 2 x DB9 male
Max. No. of Boards per PC: 8
No. of Ports: 2
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals: RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features
Windows Drivers:
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers:
Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers:
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters
Input Current: 93 mA @ 5 VDC

Physical Characteristics
Dimensions: 80 x 120 mm (3.15 x 4.72 in)
LED Interface: Built-in Tx, Rx LEDs for each port

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (Package Included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

Declaration
Green Product: RoHS, CRoHS, WEEE

MTBF
Time: 574,050 hrs
Standards: MIL-HDBK-217F

Warranty
Warranty Period: 5 years
