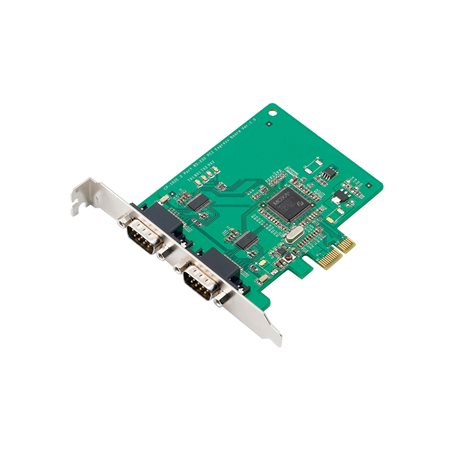

MOXA CP-102EL-DB9M Serial Expansion Module

MOXA CP-102EL-DB9M Serial Expansion Module

Regular price $137.00 CAD
Regular price Sale price $137.00 CAD
Sale Sold out

Features and Benefits

  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View full details

Description

The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baudrate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.

Specification

Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Bus: PCI Express 1.0
Connector: DB25 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 2

Serial Standards
RS-232

Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features
Windows Drivers:

DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Drivers:

Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

UNIX Drivers:

QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters
Input Current: 552 mA @ 3.3 VDC

Physical Characteristics
Dimensions: 67.21 x 100 mm (2.65 x 3.94 in)

LED Interface
LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class B
EMS:

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Declaration
Green Product: RoHS, CRoHS, WEEE

MTBF: 4,947,552 hrs
Standards: Telcordia (Bellcore) Standard TR/SR

Warranty
Warranty Period: 5 years
