Moxa

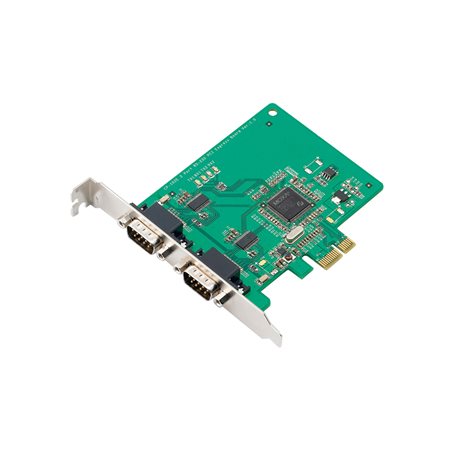

MOXA CP-102E CABLE PCI EXPRESS SERIAL BOARD

MOXA CP-102E CABLE PCI EXPRESS SERIAL BOARD

Regular price $137.00 CAD
Regular price Sale price $137.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-232 Serial Ports
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View full details

Description

MOXA CP-102E Introduction
In the CP-102E/102EL Series, The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baud rate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.

The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Moxa continues to support a wide variety of operating systems, and there is no exception for the CP-102E/EL boards. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration applications.

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 2
Bus interface: PCI Express 1.0
Serial Standards: RS-232
Connector: 2 x DB9 male
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: -
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Multiport Serial Boards: Power Requirements
Power requirement: 520 mA @ 3.3 VDC
Multiport Serial Boards: General
MTBF: 4,947,552 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 85.04 x 1000 mm (3.35 x 3.94 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
