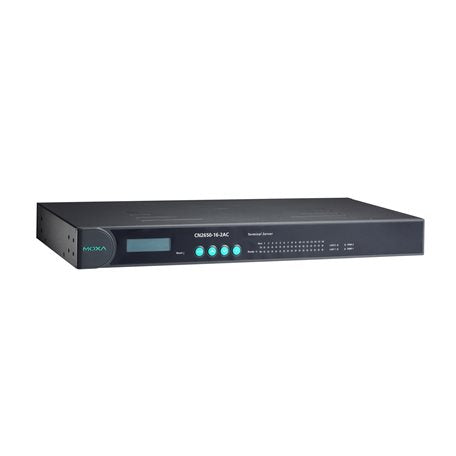

MOXA CN2650I-16-2AC TERMINAL SERVER

$5,435.00 CAD

Special Offer Out of Stock

Product variants

MOXA CN2650I-16-2AC TERMINAL SERVER

Features and Benefits

LCD panel for easy IP address configuration (excluding wide-temperature range models)
Dual-LAN cards with two independent MAC addresses and IP addresses
Redundant COM function available when both LANs are active
Dual-host redundancy can be used to add a backup PC to your system
Dual-AC-power inputs (for AC models only)
Real COM/TTY drivers for Windows and Linux
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
With 2 kV isolation MOXA TERMINAL SERVER

View full details

Description

Data sheet

Specification

No. of Ports: 2 x 10/100BaseT(X) Ports (RJ45 connector)
No. of Ports: 16
Connector: 8-pin RJ45
Serial Standards: RS-232, RS-422, RS-485
Operation Modes: Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, RTS/CTS, DTR/DSR, XON/XOFF
Flow Control: None, RTS/CTS, DTR/DSR, XON/XOFF
Input Current: 200 mA @ 88 VDC
Input Voltage: 100 to 240 VAC, 47 to 63 Hz
Housing: Metal
Dimensions: 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS, Safety, Vibration, Freefall, RoHS, CRoHS, WEEE
MTBF: 247,119 hrs
