Moxa

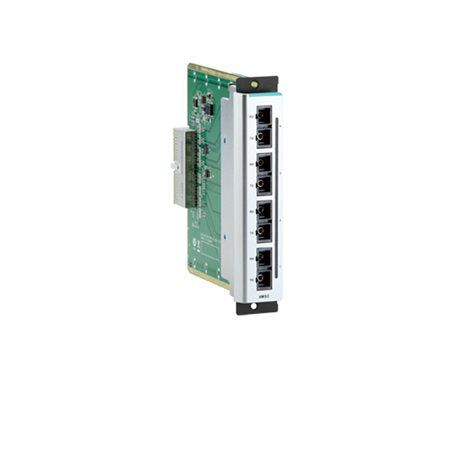

MOXA CM-600-4SSC Fiber Ethernet Expansion Module

$4,437.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Modular design with 4-port copper/fiber combinations
Hot-swappable media modules for continuous operation

View full details

Description

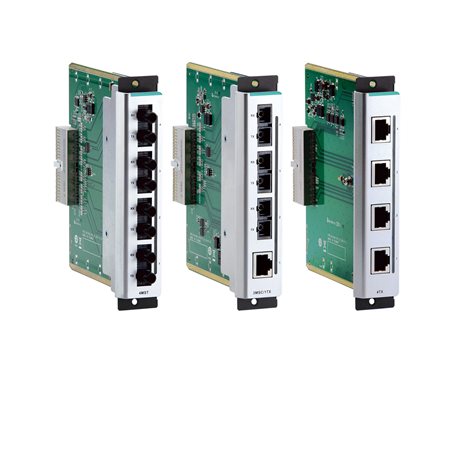

The CM-600 Module Series has been designed for use with the EDS-600 Series. The CM-600 Series has a compact modular design with one slot that accommodates 4 ports, which support multiple media types including TX, MSC, SSC, and MST. The modular design ensures that the EDS-600 Series can meet multiple application requirements.

Data sheet

Specification

Modules: Interface
Ports: 4 x 100BaseFX ports
Connector: Single-mode SC
Typical Distance: G.652: 40 km

Modules: Power Requirements
Power Information: Power Consumption: 2.44 W (max.)

Modules: Physical Characteristics
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Telcordia (Bellcore), GB
Size: _
Net Weight: 240 g (0.53 lb)
Temperature: -40 to 75°C (-40 to 167°F)
MTBF: 740,661 hrs
