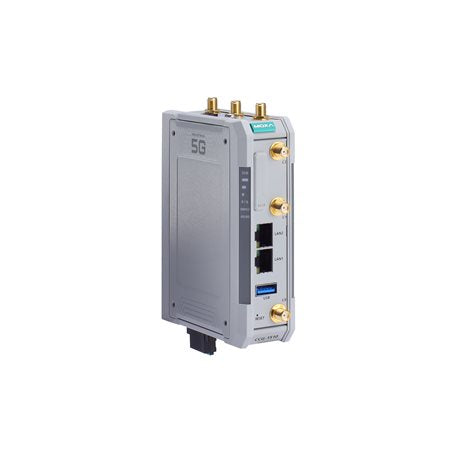

MOXA CCG-1510-US-T Industrial Private 5G Cellular Gateway

MOXA CCG-1510-US-T Industrial Private 5G Cellular Gateway

$1,912.00 CAD
$1,912.00 CAD
Sale Sold out

Features and Benefits

  • Qualcomm® Snapdragon™ X55
  • 5G-ready media converter with industrial-grade FCC/UL/NCC/JET/Telec certifications
  • Dual SIM slots
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • 1 RS-232/422/485 serial port
  • LEDs for easy installation and maintenance
  • -40 to 70°C wide-temperature design
View full details

Description

The CCG-1500 Series is designed both as a media converter and a protocol converter. The media converter includes 5G-to-ethernet and 5G-to-serial ports, which can be used for public as well as private networks. The protocol converter is mainly for Modbus TCP/RTU conversion. The 5G interface can use Modbus TCP while the serial interface can process Modbus RTU.

The CCG-1500 is built around a Qualcomm® Snapdragon™ X55 Cortex-A7 processor that has been optimized for use in media-conversion scenarios, and is also widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny, embedded converter is a reliable and secure gateway for data processing at field sites as well as a useful communications platform for large-scale deployments.

Wide temperature 5G-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the 5G-enabled computing platforms are suitable for wide-temperature applications.

Data sheet

Specification

3G Modem: Interface
Memory card slot for storage: No
MicroUSB: No
SIM card slot: Yes (2 SIM card slots)
WAN: No
LAN: Yes (2 x 10/100/1000BaseT(X) Ports, RJ45 connector)
USB: No
FXO / FXS: No
DSL: No
Digital Input and Output: No
Serial port: Yes (RS-232/422/485 ports x 1, 5-pin terminal block)
Alert Output: No

3G Modem: Radio Specifications
Standards and Wireless Standards: No
2G, 3G, 4G Standards: _
Radio Connection type: _
WiFi Antenna: No
4G / 3G / 2G Antenna: SMA x 6
WiFi Gain Antenna: No
4G / 3G / 2G Gain Antenna: _
Maximum WiFi data transfer speed: No
Maximum data transfer speed of 2G: _
Maximum data transfer speed of 3G: _
Maximum data transfer speed of 4G: _
WiFi Radio Frequency: No
2G network frequency: _
3G network frequency: _
4G network frequency: _
Number of radio channels: No
Maximum direct range: _
Maximum WiFi Output Power: No
Radio Channel Bandwidth: No

3G Modem: Software Specifications
VPN: _
Firewall: _
WPS: No
Serial performance: _

3G Modem: General
Operating mode: _
Management: _

3G Modem: Standards and Protocols
Protocols: _
Serial port standard: RS-232/422/485

3G Modem: Features and Capabilities
3G phone calls: No
Create and edit phonebook: Yes
Send and receive SMS: _

3G Modem: Security
Security and Encryption: _
Authentication: _
Serial security: _
SSID: _

3G Modem: Power Requirements
Power Consumption (Output Adapter): Average: 8 W, Peak: 11 W
POE Support: No
Battery: No
Type of power input: Terminal block

3G Modem: Buttons
Power button: No
3G / WAN button: No
WPS button: No
Reset: _

3G Modem: LED Indicators
Phone: No
SMS: No
WLAN: No
4G / 3G / 2G: Yes
WAN: No
LAN: Yes
Power: Yes
Internet: _
Wireless Signal Strength: Cellular x 3
WPS: No

3G Modem: Physical Characteristics
Dimensions: 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)
Weight: 750 g (1.65 lb)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Type of Use: Industrial environment

3G Modem: Standards and Certifications
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X)
