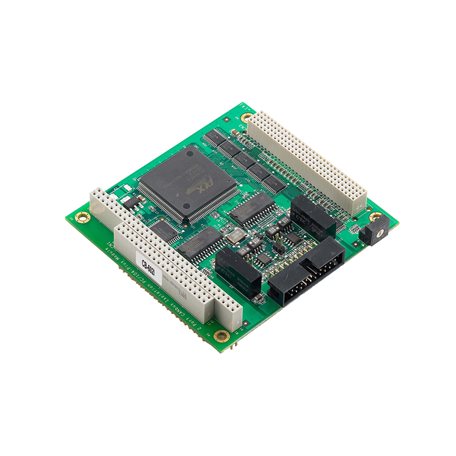

MOXA CB-602I-T w/o Cable CANBUS Module

MOXA CB-602I-T w/o Cable CANBUS Module

$793.00 CAD
$793.00 CAD
Sale Out of Stock

Features and Benefits

  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows drivers provided
  • -40 to 85°C Operating Temperature
View full details

Description

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

You can also find the CB-602I-T w/o Cable model in the Multiport Serial Cards.

Data sheet

Specification

CANbus Serial Boards: Serial Interface
Number of Ports: 8 x Max. No. of Boards per PC,
Serial Standards: -,
Connector: Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices,
Serial Isolation Protection: 2 kV

CANbus Serial Boards: CAN Interface
Number of Ports: 2,
Connector: 20-pin box header,
Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined

CANbus Serial Boards: General
Standards and Certifications: EMC, EMI, EMS,
MTBF: 248,563 hrs

CANbus Serial Boards: Physical Characteristics
Operating Temperature: -40 to 85°C (32 to 131°F),
Storage Temperature: -40 to 85°C (-40 to 185°F),
Ambient Relative Humidity: 5 to 95% (non-condensing),
Dimensions: 95.9 x 90.2 mm
