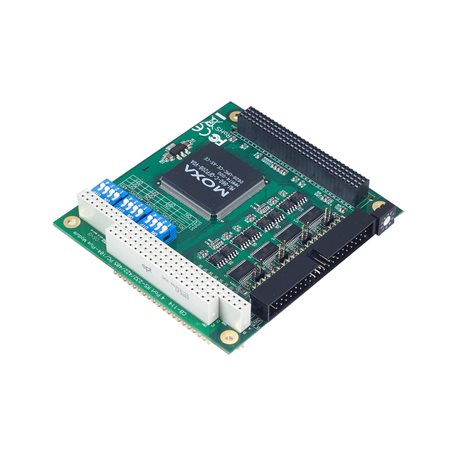

MOXA CB-134I-T SERIAL MODULE BOARD

MOXA CB-134I-T SERIAL MODULE BOARD

$733.00 CAD
$733.00 CAD
Sale Sold out

Features and Benefits

  • 4 x RS-422/485 Serial ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip software flow control
  • The serial interface is DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows XP/Vista/7, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Compatible with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
View full details

Description

MOXA CB-134I Introduction
The CB-134I PC/104-Plus modules come with 4 RS-422/485 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-134I modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.

You can also find the CB-134I-T model in the CB-134I Series.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C or compatible x 4
Number of Ports: 4
Bus Interface: PC/104 plus bus
Serial Standards: RS-422, RS-485
Connector: 40-pin box header
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7
Multiport Serial Boards: Power Requirements
Power Requirement: 153 mA @ 5 VDC
Multiport Serial Boards: General
MTBF: 403,631 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 90 x 96 mm (3.54 x 3.78 in)
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
