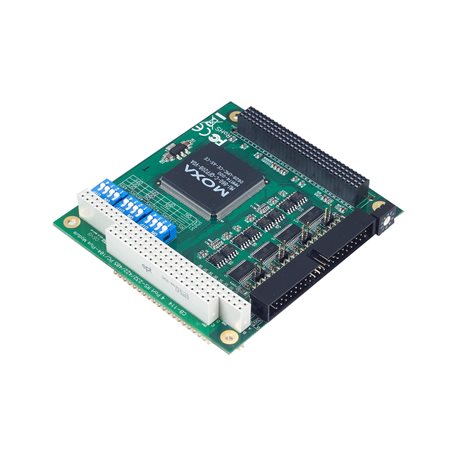

MOXA CB-114-T Serial Module Board

MOXA CB-114-T Serial Module Board

$465.00 CAD
$465.00 CAD
Sale Out of Stock

Features and Benefits

  • 4 x RS-232/422/485 Serial ports
  • PC/104-Plus Serial Bus
  • -40 to 85°C operating temperature
  • The serial interface is a DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • With PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
View full details

Description

The CB-114 PC/104-Plus modules come with 4 RS-232/422/485 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-114 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C or compatible x 4,
Number of Ports: 4,
Bus Interface: PC/104 plus bus,
Serial Standards: RS-232/422/485,
Connector: 40-pin box header,
Baudrate: 50 bps to 921.6 kbps,
Stop Bits: 1, 1.5, 2,
Parity: None, Even, Odd, Space, Mark,
Flow Control: None, RTS/CTS, XON/XOFF,
Data Bits: 5, 6, 7, 8,
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded,
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x,
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7

Multiport Serial Boards: Power Requirements
Power Requirement: 164 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 381,081 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 90 x 96 mm (3.54 x 3.78 in),
Standards and Certifications: EMC: EN 55032/24, EMI: CISPR 32, FCC Part 15B Class A, EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, IEC 60068-2-14, Vibration: IEC 60068-2-6, Green Product: RoHS, CRoHS, WEEE,
Storage Temperature: -40 to 85°C (-40 to 185°F),
Operation Humidity: 5 to 95% (non-condensing)
