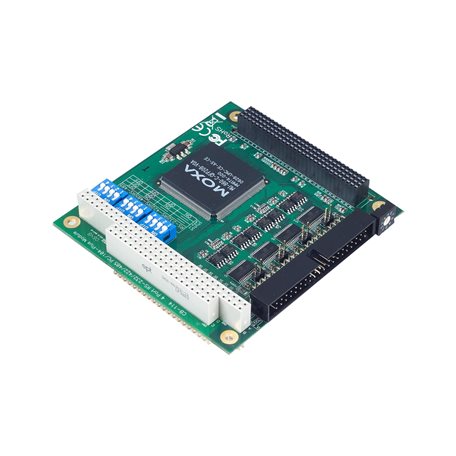

MOXA CB-114 SERIAL MODULE BOARD

MOXA CB-114 SERIAL MODULE BOARD

$342.00 CAD
$342.00 CAD
Sale Sold out

Features and Benefits

  • 4 x RS-232/422/485 Serial ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • The serial interface is DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Compatible with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
View full details

Description

MOXA CB-114 Introduction
In the CB-114 Series, the CB-114 PC/104-Plus modules come with 4 RS-232/422/485 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-114 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.

You can purchase the MOXA CB-114 Serial Module Board, tailor-made for industrial Automation at a competitive price, and simplify your buying process by placing an order through our website or inquire at our Toronto and Waterloo office. Our dedicated team is always ready to assist you.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C or compatible x 4
Number of Ports: 4
Bus Interface: PC/104 bus
Serial Standards: RS-422, RS-485
Connector: 40-pin box header
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 64 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x
UNIX Drivers: -
Multiport Serial Boards: Power Requirements
Power Requirement: 220 mA @ 5 VDC
Multiport Serial Boards: General
MTBF: 339,822 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 90 x 96 mm (3.54 x 3.78 in)
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
