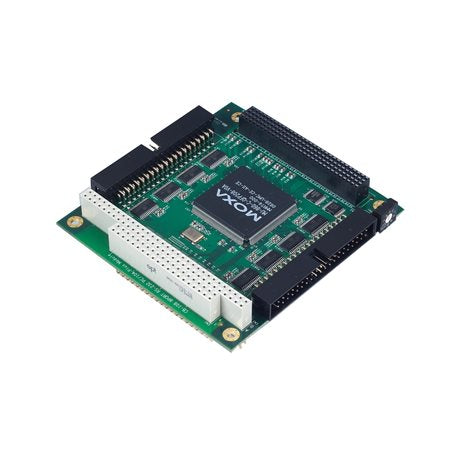

MOXA CB-108-T SERIAL MODULE BOARD

MOXA CB-108-T SERIAL MODULE BOARD

$515.00 CAD
$515.00 CAD
Sale Sold out

Features and Benefits

  • 8 x RS-232 Serial ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Easy maintenance with built-in LEDs and management software
  • Compatible with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
View full details

Description

MOXA CB-108 Introduction
The CB-108 PC/104-Plus modules come with 8 RS-232 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.

You can also find the CB-108-T model in the CB-108 Series.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C or compatible x 4
Number of Ports: 8
Bus Interface: PC/104 plus bus
Serial Standards: RS-232
Connector: 40-pin box header
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: Windows CE 5.0/6.0, and Windows XP Embedded operating systems
Linux Drivers: -
UNIX Drivers: -

Multiport Serial Boards: Power Requirements
Power Requirement: 153 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 403,631 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 90 x 96 mm (3.54 x 3.78 in)
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
