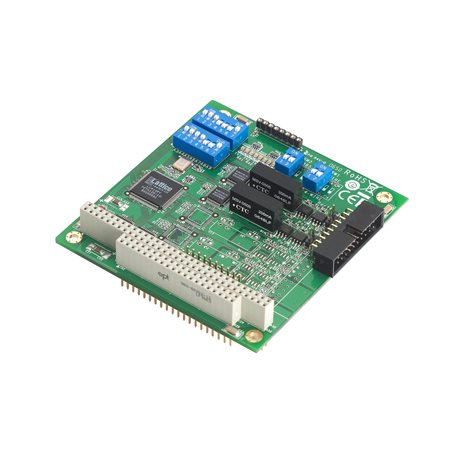

MOXA CA-132I-T SERIAL MODULE BOARD

MOXA CA-132I-T SERIAL MODULE BOARD

$342.00 CAD
$342.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-422/RS-485 Serial ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports RS-485 ADDC® (Automatic Data Direction Control)
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • 2kv Serial Isolation Protection
View full details

Description

MOXA CA-132 Introduction
The CA-132/132I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 2 RS-422/485 ports and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

You can also find the CA-132I and CA-132I-T models in the CA-132/132I Series.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C or compatible x 2
Number of Ports: 2
Bus Interface: PC/104 bus
Serial Standards: RS-422, RS-485
Connector: 20-pin box header
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 64 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x
UNIX Drivers: FreeBSD 4.x, QNX 4, SCO UNIX, OpenServer
Multiport Serial Boards: Power Requirements
Power Requirement: 155 mA @ 5 VDC
Multiport Serial Boards: General
MTBF: 536,288 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 90 x 96 mm (3.54 x 3.78 in)
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
