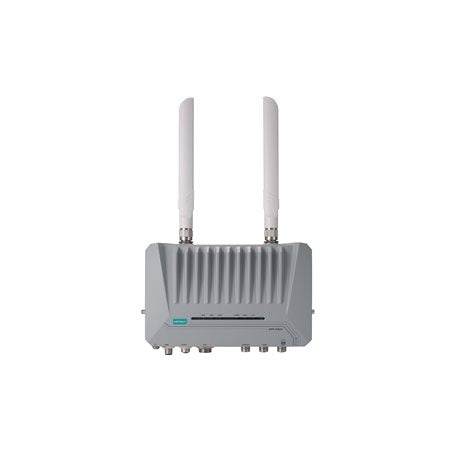

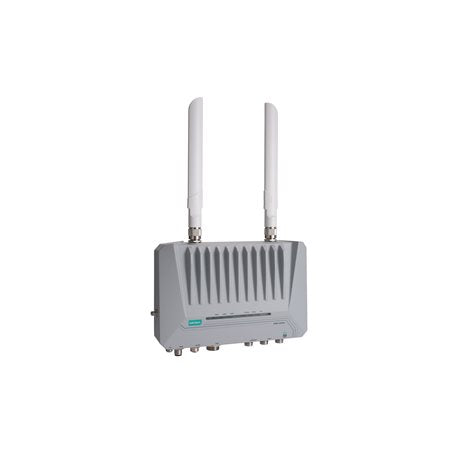

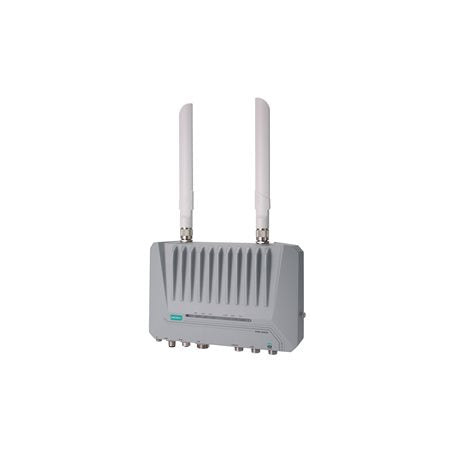

WLAN Standards
2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz: 11 channels
5.180 to 5.240 GHz: 4 channels
5.260 to 5.320 GHz: 4 channels
5.500 to 5.700 GHz: 11 channels
5.745 to 5.825 GHz: 5 channels
Wireless Security
WEP encryption: 64-bit and 128-bit
WPA/WPA2/WPA3-Enterprise: IEEE 802.1X/RADIUS, TKIP, AES
WPA/WPA2/WPA3-Personal
Transmission Rate
2.4 GHz: Up to 573.5 Mbps
5 GHz: Up to 1,201 Mbps
Transmitter Power for 802.11a (Dual Chain)
26±1.5 dBm: @ 6 Mbps
24.5±1.5 dBm: @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain)
25.5±1.5 dBm: @ MCS0 20 MHz
21±1.5 dBm: @ MCS7 20 MHz
24.5±1.5 dBm: @ MCS0 40 MHz
22±1.5 dBm: @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain)
25.5±1.5 dBm: @ MCS0 20 MHz
21±1.5 dBm: @ MCS8 20 MHz
24.5±1.5 dBm: @ MCS0 40 MHz
21±1.5 dBm: @ MCS9 40 MHz
25±1.5 dBm: @ MCS0 80 MHz
21±1.5 dBm: @ MCS9 80 MHz
Transmitter Power for 802.11ax (Dual Chain)
25±1.5 dBm: @ MCS0 20 MHz
19±1.5 dBm: @ MCS11 20 MHz
24.5±1.5 dBm: @ MCS0 40 MHz
19±1.5 dBm: @ MCS11 40 MHz
25±1.5 dBm: @ MCS0 80 MHz
19±1.5 dBm: @ MCS11 80 MHz
Transmitter Power for 802.11b (Dual Chain)
29±1.5 dBm: @ 1 Mbps
29±1.5 dBm: @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain)
27±1.5 dBm: @ 6 Mbps
26±1.5 dBm: @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain)
26±1.5 dBm: @ MCS0 20 MHz
24±1.5 dBm: @ MCS7 20 MHz
26±1.5 dBm: @ MCS0 40 MHz
24±1.5 dBm: @ MCS7 40 MHz
Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)
26±1.5 dBm: @ MCS0 20 MHz
23±1.5 dBm: @ MCS8 20 MHz
26±1.5 dBm: @ MCS0 40 MHz
22±1.5 dBm: @ MCS9 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)
26±1.5 dBm: @ MCS0 20 MHz
20±1.5 dBm: @ MCS11 20 MHz
26±1.5 dBm: @ MCS0 40 MHz
20±1.5 dBm: @ MCS11 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 dBm: @ 6 Mbps
Typ. -72 dBm: @ 54 Mbps
Receiver Sensitivity for 802.11ac (5 GHz)
Typ. -88 dBm: @ MCS0 20 MHz
Typ. -65 dBm: @ MCS8 20 MHz
Typ. -85 dBm: @ MCS0 40 MHz
Typ. -61 dBm: @ MCS9 40 MHz
Typ. -82 dBm: @ MCS0 80 MHz
Typ. -58 dBm: @ MCS9 80 MHz
Receiver Sensitivity for 802.11ax (5 GHz)
Typ. -89 dBm: @ MCS0 20 MHz
Typ. -59 dBm: @ MCS11 20 MHz
Typ. -86 dBm: @ MCS0 40 MHz
Typ. -56 dBm: @ MCS11 40 MHz
Typ. -83 dBm: @ MCS0 80 MHz
Typ. -53 dBm: @ MCS11 80 MHz
Receiver Sensitivity for 802.11b
Typ. -96 dBm: @ 1 Mbps
Typ. -88 dBm: @ 11 Mbps
Receiver Sensitivity for 802.11g
Typ. -91 dBm: @ 6 Mbps
Typ. -74 dBm: @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz)
Typ. -89 dBm: @ MCS0 20 MHz
Typ. -71 dBm: @ MCS7 20 MHz
Typ. -86 dBm: @ MCS0 40 MHz
Typ. -68 dBm: @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz)
Typ. -89 dBm: @ MCS0 20 MHz
Typ. -67 dBm: @ MCS8 20 MHz
Typ. -86 dBm: @ MCS0 40 MHz
Typ. -63 dBm: @ MCS9 40 MHz
Receiver Sensitivity for 802.11ax (2.4 GHz)
Typ. -91 dBm: @ MCS0 20 MHz
Typ. -59 dBm: @ MCS11 20 MHz
Typ. -87 dBm: @ MCS0 40 MHz
Typ. -56 dBm: @ MCS11 40 MHz
WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer

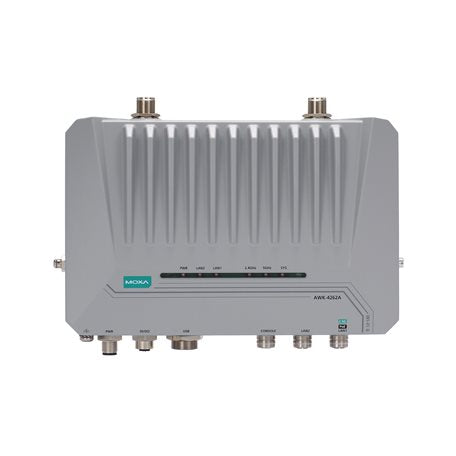

Antenna
External: 3/6 dBi
Omni-directional
Antenna Connectors: 2 x N-type female
Ethernet Interface
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3bz for 2.5GBaseX, IEEE 802.3af for PoE, IEEE 802.3at for PoE, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.1X for authentication
PoE Ports (10/100/1000/2500BaseT(X), M12 connector): 1
10/100/1000BaseT(X) Ports (M12 connector): 1
Ethernet Software Features
Management: DHCP Server, DHCP Client, DNS, HTTP, IPv4/IPv6, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig
Routing: Port forwarding, Static Route, NAT
Security: HTTPS/SSL, RADIUS, SSH, Certificate Management
Time Management: SNTP Client
Firewall: Filter ICMP, MAC address, IP protocol, Port-based
Wi-Fi ACL
Client Isolation
Serial Interface
Console Port: RS-232, 5 pin M12
USB Interface
Storage Port: USB Type A (for ABC-02 use only)
LED Interface
LED Indicators: PWR, LAN1, LAN2, 2.4GHz, 5GHz, SYS
Input/Output Interface
Digital Inputs: 2
Max. input current: 8 mA
+13 to +30 V: for state 1
+3 to -30 V: for state 0
Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons: Reset button

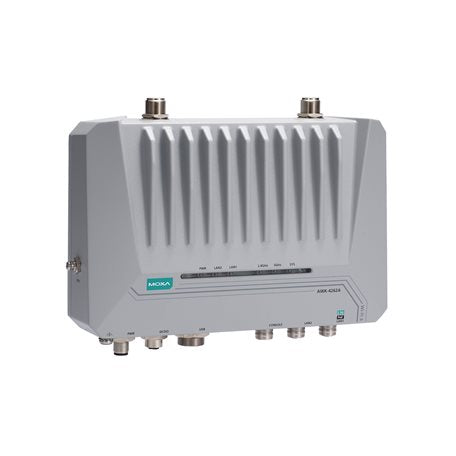

Physical Characteristics
Housing: Metal
Dimensions: 65.9 x 157.6 x 244 mm (2.59 x 6.20 x 9.61 in)
IP Rating: IP68
Weight: 1,980 g (4.37 lb)
Installation: Wall mounting, DIN-rail mounting (with optional kit), Pole mounting (with optional kit)
Power Parameters
Input Current: 12-48 VDC, 2-0.5 A
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector: M12 A-coded 5-pin male connector
Power Consumption: 24 W (max.)
Environmental Limits
Operating Temperature: Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m
Safety: IEC 62368-1, UL 62368-1
Vibration: IEC 60068-2-6
Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, KC
MTBF Time: 2,376,815 hrs
Standards: Telcordia Standard SR-332
Warranty Period: 5 years
