Moxa

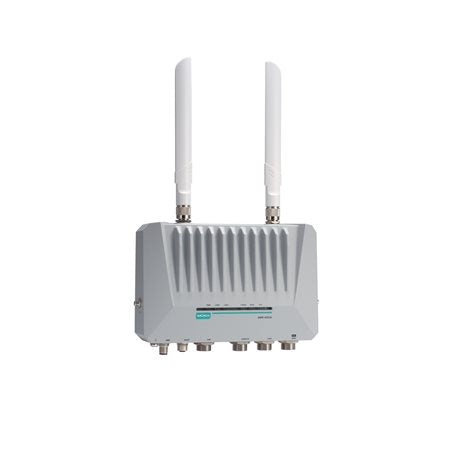

MOXA AWK-4252A-UN-T Wireless AP/Bridge/Client

MOXA AWK-4252A-UN-T Wireless AP/Bridge/Client

$2,876.00 CAD
$2,876.00 CAD
Sale Sold out

Features and Benefits

  • Universal (UN) models with configurable country or region codes for more flexible deployment
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector), 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Easy network setup with Network Address Translation (NAT)
  • Integrated antenna isolation
  • IP68-rated weatherproof housing
View full details

Description

The AWK-4131A IP68 outdoor industrial AP/bridge/client meets the growing need for faster data transmission speeds by supporting 802.11n technology and allowing 2X2 MIMO communication with a net data rate of up to 300 Mbps. The AWK-4131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4131A can be powered via PoE to make deployment easier. The AWK-4131A can operate on either the 2.4 GHz or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.

Advanced 802.11n Industrial Wireless Solution

802.11a/b/g/n compliant AP/bridge/client for flexible deployment
Software optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)
Supports 60 clients connected concurrently
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

AeroMag supports error-free setup of your industrial applications’ fundamental WLAN settings
Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)
Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between APs and their clients

Industrial Ruggedness

Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
IP68-rated metal casing for complete ingress protection for any outdoor weather
-40 to 75°C wide operating temperature models available for smooth wireless communication in harsh environments

You can also find the AWK-4131A-JP-T and AWK-4131A-US-T models in the AWK-4131ASERIES.

You can purchase the MOXA AWK-4131A-EU-T Wireless Access Point, tailor-made for industrial Automation at a competitive price, and simplify your buying process by placing an order through our website or inquire at our Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Our dedicated team is always ready to assist you.

Data sheet

Specification

Access Point: Interfaces
Modulation Type: -
10/100/1000BaseT(X) Ports: 1 x RJ45
PoE Ports: 1 x RJ45
Wireless Security: HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: 2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Transmission Rates: 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
Digital Inputs: 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port: RS-232, 8-pin RJ45

Access Point: Power Requirement
Input Current: 12-48 VDC, 2.2-0.5 A
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption: 28.4 W (max.)
Reverse Polarity Protection: -

Access Point: Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 66.5 x 157.6 x 244 mm (2.56 x 6.20 x 9.61 in)
IP Rating: IP30
Weight (PACKAGED): 2024 g (4.7 lb)
Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
