Moxa

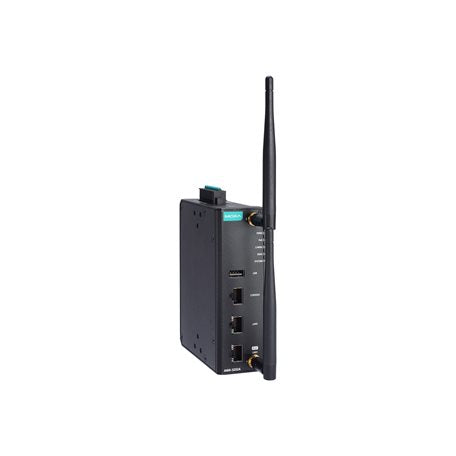

MOXA AWK-3252A-US-T WIRELESS AP/BRIDGE/CLIENT

MOXA AWK-3252A-US-T WIRELESS AP/BRIDGE/CLIENT

Regular price $1,559.00 CAD
Regular price Sale price $1,559.00 CAD
Sale Sold out

Features and Benefits

  • -40 to 75°C operating temperature
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector), 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Easy network setup with Network Address Translation (NAT)
  • Integrated antenna isolation
View full details

Description

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

Specification

Modulation Type: -
10/100/1000BaseT(X) Ports: 1 x RJ45
PoE Ports: 1 x RJ45
Wireless Security: HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: IEEE 802.11a/b/g/n/ac
Transmission Rates: 2.4 GHz: 802.11b: 1 to 11 Mbps, 802.11g: 6 to 54 Mbps, 802.11n: 6.5 to 400 Mbps; 5 GHz: 802.11a: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps, 802.11ac: 6.5 to 867 Mbps
Digital Inputs: 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port: RS-232, 8-pin RJ45
Input Current: 12-48 VDC, 2.2-0.5 A
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption: 28.4 W (max.)
Reverse Polarity Protection: -
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
IP Rating: IP30
Weight (PACKAGED): 700 g (1.5 lb)
Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
MTBF: 653,801 hrs
LED Indicators: PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2
