Moxa

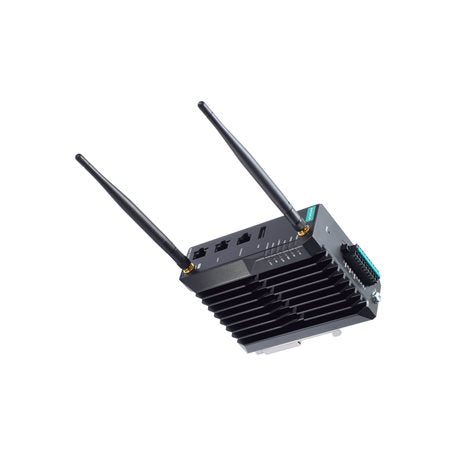

MOXA AWK-3252A-UN Wireless AP/Bridge/Client

MOXA AWK-3252A-UN Wireless AP/Bridge/Client
$1,930.00 CAD
$1,930.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Universal (UN) models with configurable country or region codes for more flexible deployment
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector), 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Easy network setup with Network Address Translation (NAT)
  • Integrated antenna isolation
View full details

Description

Data sheet

Specification

Access Point: Interfaces
Modulation Type: -
10/100/1000BaseT(X) Ports: 1 x RJ45
PoE Ports: 1 x RJ45
Wireless Security: HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: IEEE 802.11a/b/g/n/ac
Transmission Rates: 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
Digital Inputs: 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port: RS-232, 8-pin RJ45

Access Point: Power Requirement
Input Current: 12-48 VDC, 2.2-0.5 A
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption: 28.4 W (max.)
Reverse Polarity Protection: -

Access Point: Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
IP Rating: IP30
Weight (PACKAGED): 700 g (1.5 lb)
Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge:
