Moxa

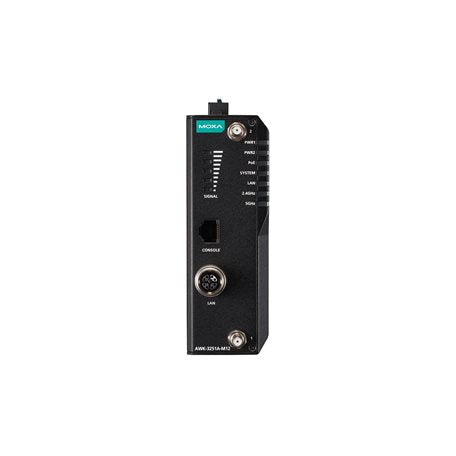

MOXA AWK-3251A-M12-RCC-UN Wireless Access Point

MOXA AWK-3251A-M12-RCC-UN Wireless Access Point

$2,466.00 CAD
$2,466.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 0/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) and Supports IEEE 802.3at PoE
  • -25 to 60°C Operating Temperature
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Designed specifically for rail carriage-to-carriage communication
  • Built-in 2.4 GHz and 5 GHz bandpass filters for more reliable wireless connections
View full details

Description

The AWK-3251A-RCC Series industrial 802.11n wireless AP/client is an ideal wireless solution for applications such as onboard passenger infotainment systems and inter-carriage wireless backbone networks because it provides a faster data rate compared to 802.11g devices. The auto carriage connection (ACC) features easy deployment of wireless devices and increases the reliability of wireless carriage backbone networks. The AWK-3251A-RCC Series is also optimized for passenger Wi-Fi services and complies with a portion of the EN 50155 specifications covering operating temperature, power input voltage, surge, ESD, and vibration, making the products suitable for a variety of industrial applications. The AWK-3251A-RCC Series can also be powered via the PoE port for easier deployment.

Enjoy online features to order the MOXA AWK-3251A-M12-RCC-UN Wireless Access Point with a price match guarantee, and experience cost-effective delivery service

Data sheet

Specification

Access Point: Interfaces
Modulation Type: -
10/100/1000BaseT(X) Ports: 1 x RJ45
PoE Ports: 1 x RJ45
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer, ACC
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: 2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Transmission Rates: 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
Digital Inputs: 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port: RS-232, 8-pin RJ45

Access Point: Power Requirement
Input Current: 12-48 VDC, 2.01-0.5 A
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption: 24.12 W (max.)
Reverse Polarity Protection: -

Access Point: Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)
IP Rating: IP30
Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal:
