Moxa

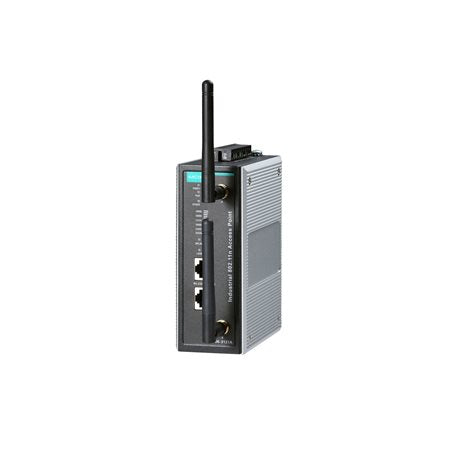

MOXA AWK-3131A-EU-T Wireless Access Point

MOXA AWK-3131A-EU-T Wireless Access Point

$1,777.00 CAD
$1,777.00 CAD
Sale Sold out

Features and Benefits

  • 10/100/1000BaseT(X) Ports (RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 wireless client
  • Selectable dual-band Wi-Fi with data rates up to 867 Mbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Millisecond-level Client-based Turbo Roaming
  • Integrated antenna isolation
View full details

Description

The AWK-1151C Series industrial wireless client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for data rates up to 867 Mbps. The AWK-1151C complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

Data sheet

Specification

Modulation Type: Not specified
10/100/1000BaseT(X) Ports: 1 x RJ45
PoE Ports: No
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3 Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Operation Mode: Client, Client-Router, Slave, Sniffer
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: 802.11a/b/g/n
Transmission Rates: 2.4 GHz: 802.11b: 1 to 11 Mbps, 802.11g: 6 to 54 Mbps, 802.11n: 6.5 to 400 Mbps and 5 GHz: 802.11a: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps, 802.11ac: 6.5 to 867 Mbps
Digital Inputs: No
Console Port: RS-232, 8-pin RJ45
Input Current: 9 to 30 VDC, 1.57 to 0.47 A
Input Voltage: 9 to 30 VDC
Power Consumption: 14 W (max.)
Reverse Polarity Protection: Not specified
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)
IP Rating: IP30
Weight (PACKAGED): 436 g (0.96 lb)
Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV, Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-13 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
MTBF: 1,144,888 hrs
LED Indicators: PWR, WLAN, SYSTEM
