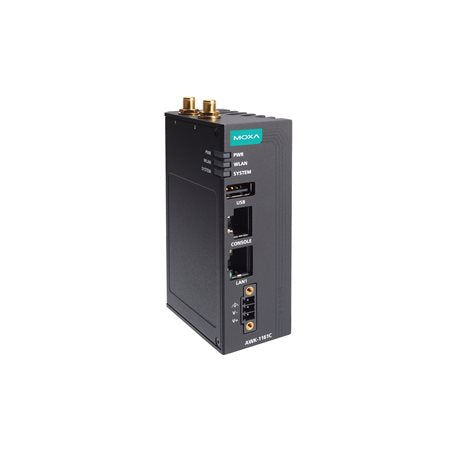

MOXA AWK-1161C-UN-T WIRELESS ACCESS POINT

MOXA AWK-1161C-UN-T WIRELESS ACCESS POINT

$986.00 CAD
$986.00 CAD
Sale Sold out

Features and Benefits

  • Band: UN
  • High-speed IEEE 802.11ax Wi-Fi
  • Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region codes for more flexible deployment
  • Built-in 2.4 GHz and 5 GHz bandpass filters for more reliable wireless connections
  • -40 to 75°C wide operating temperature range
  • Integrated antenna isolation
View full details

Description

Introduction
The AWK-1161A Series industrial wireless AP is designed to meet the growing need for faster data transmission speeds while servicing more clients through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1161A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless services. The AWK-1161A supports selectable 2.4 and 5 GHz bands and is backward compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

You can also find the AWK-1161A-UN, AWK-1161A-US, and AWK-1161A-US-T models in the AWK-1161A Series.


You can order online for AWK-1161A-UN-T and enjoy the convenience of delivery to your specified location at a reasonable price.

Data sheet

Specification

Access Point: Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 60 x 100 x 47.2 mm (2.36 x 3.94 x 1.86 in)
IP Rating: IP30
Weight (PACKAGED): 387.5 g (0.85 lb)
Standards and Certifications: EMC, EMI, EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM, E mark E1, Safety, Vibration, E-Mark
Safety: IEC 62368-1, UL 62368-1
EMC: EN 61000-6-2/-6-4, EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)

Access Point: General
Management: DHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP,, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig
MTBF: 4,002,106 hrs
LED Indicators: PWR, WLAN, SYSTEM
