Moxa

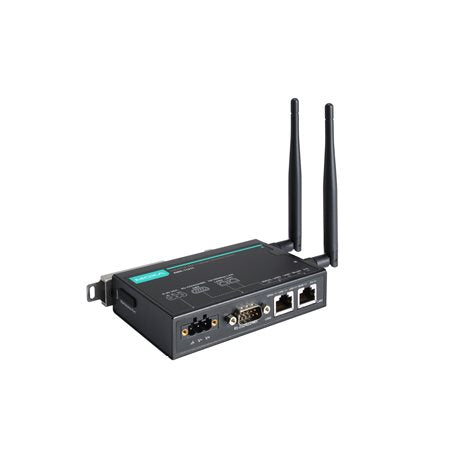

MOXA AWK-1137C-US-T WIRELESS ACCESS POINT

MOXA AWK-1137C-US-T WIRELESS ACCESS POINT

$874.00 CAD
$874.00 CAD
Sale Sold out

Features and Benefits

  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • IEEE 802.11a/b/g/n compliant client
  • Comprehensive interfaces with one serial port and two Ethernet LAN ports
  • Client-based millisecond-level Turbo Roaming
  • 2x2 MIMO future-proof technology
  • Integrated robust antenna and power isolation
  • Anti-vibration design
  • Compact size for your industrial applications
  • Easy setup and deployment with AeroMag
View full details

Description

The AWK-1137C is an ideal client solution for industrial wireless mobile applications. It enables WLAN connections for both Ethernet and serial devices and is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The AWK-1137C can operate on either the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to futureproof your wireless investments.

Data sheet

Specification

Modulation Type: DSSS, MIMO-OFDM, OFDM
10/100/1000BaseT(X) Ports: 2 X RJ45
PoE Ports: No
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
WLAN Operation Mode: Client, Client-Router, Slave, Sniffer
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: 802.11a/b/g/n, 802.11i Wireless Security
Transmission Rates: 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
Digital Inputs: No
Console Port: -
Input Current: -
Input Voltage: 9 to 30 VDC
Power Consumption: 11.7 W (max.)
Reverse Polarity Protection: Yes
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 77.1 x 115.5 x 26 mm (3.035 x 4.55 x 1.024 in)
IP Rating: IP30
Weight (PACKAGED): 0.47kg (1.03 lb)
Standards and Certifications: IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
Safety: EN 60950-1, UL 60950-1
EMC: EN 61000-6-2/-6-4, EN 55032/24
EMI: CISPR 22, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: 40 to75°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Management: DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, Wireless Search Utility, VLAN, MXview, MXconfig
MTBF: 1,125,942 hrs
LED Indicators: SYS, LAN1, LAN2, WLAN, Serial
