Moxa

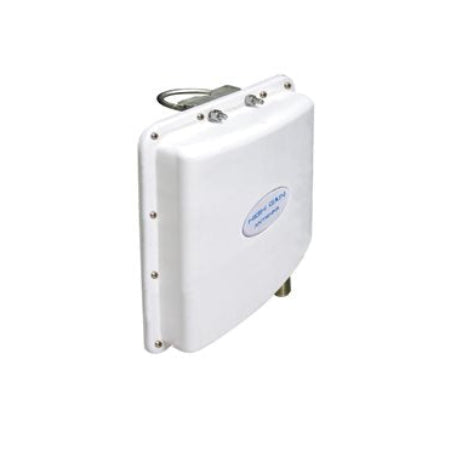

MOXA ANT-WSB-PNF-12-02 WLAN Antenna

MOXA ANT-WSB-PNF-12-02 WLAN Antenna

Regular price $373.00 CAD
Regular price Sale price $373.00 CAD
Sale Sold out

Features and Benefits

  • Frequency: 2.4 to 2.4835 GHz
  • Antenna Type: Directional, panel
  • Antenna Gain: 12 dBi
  • Connector Type: N-type (female)
  • -40 to 80°C operating temperature
  • Pole-mounting support
  • Housing provides IP65 protection
View full details

Description

The ANT-WSB-PNF-12-02 is asingle-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 12 dBi at 2.4 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Specification

Antenna Characteristics
Frequency: 2.4 to 2.4835 GHz
Antenna Type: Directional, Panel
Typical Antenna Gain: 12 dBi
Connector: N-type (female)
Impedance: 50 ohms
HPBW/Horizontal: 30°
HPBW/Vertical: 30°
V.S.W.R.: 1:2.0 max.
Power Handling: 10 W (max.)
Polarization: Vertical

Physical Characteristics
IP Rating: IP65
Dimensions: 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
Radome Color: White
Radome Material: PC and ABS
Installation: Pole mount
Weight: 796 g (1.75 lb)

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
