Moxa

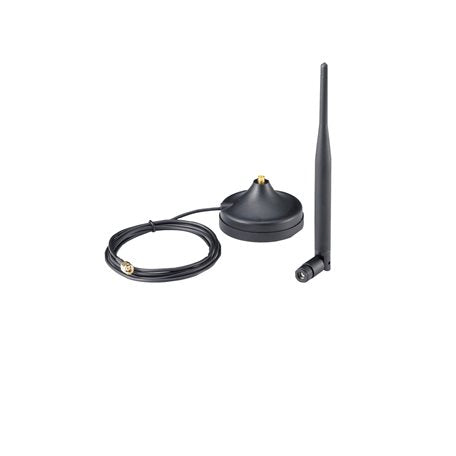

MOXA ANT-WSB-AHRM-05-1.5M WLAN ANTENNA

MOXA ANT-WSB-AHRM-05-1.5M WLAN ANTENNA

Regular price $47.00 CAD
Regular price Sale price $47.00 CAD
Sale Sold out

Features and Benefits

  • 5 dB at 2.4 GHz
  • Omni-directional antenna
  • High gain antenna
  • Small size for easy installation
  • Lightweight for portable deployment
  • Straight mount or magnetic base mount
  • SMA connector (male) supported
  • -40 to 80°C Operating Temperature
View full details

Description

In ANT-WSB-AHRM-05-1.5MSERIES, the ANT-WSB-AHRM-05-1.5m is an omnidirectional lightweight compact dual-band high-gain indoor antenna with an SMA (male) connector and magnetic mount. The antenna provides a gain of 5 dBi and is designed to operate in temperatures from -40 to 80°C.

Manufacturers Automation offers a wide variety of industrial devices and you can buy online at the lowest price and enjoy the benefits of a low-cost and on-time delivery service.

Specification

Antenna: Antenna Characteristics
Frequency: 2.4 to 2.5 GHz
Antenna Type: Omni-directional, Rubber antenna
Antenna Gain: 5 dBi
Connector: RP-SMA (male)
Impedance: 50 ohms
Polarization: Linear
Antenna: Physical Characteristics
Weight: 300 g (0.66 lb)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Storage Temperature: -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
