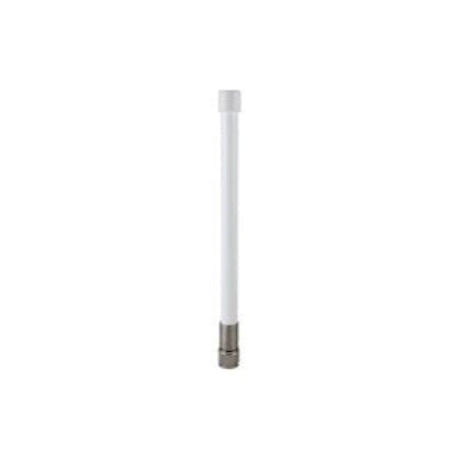

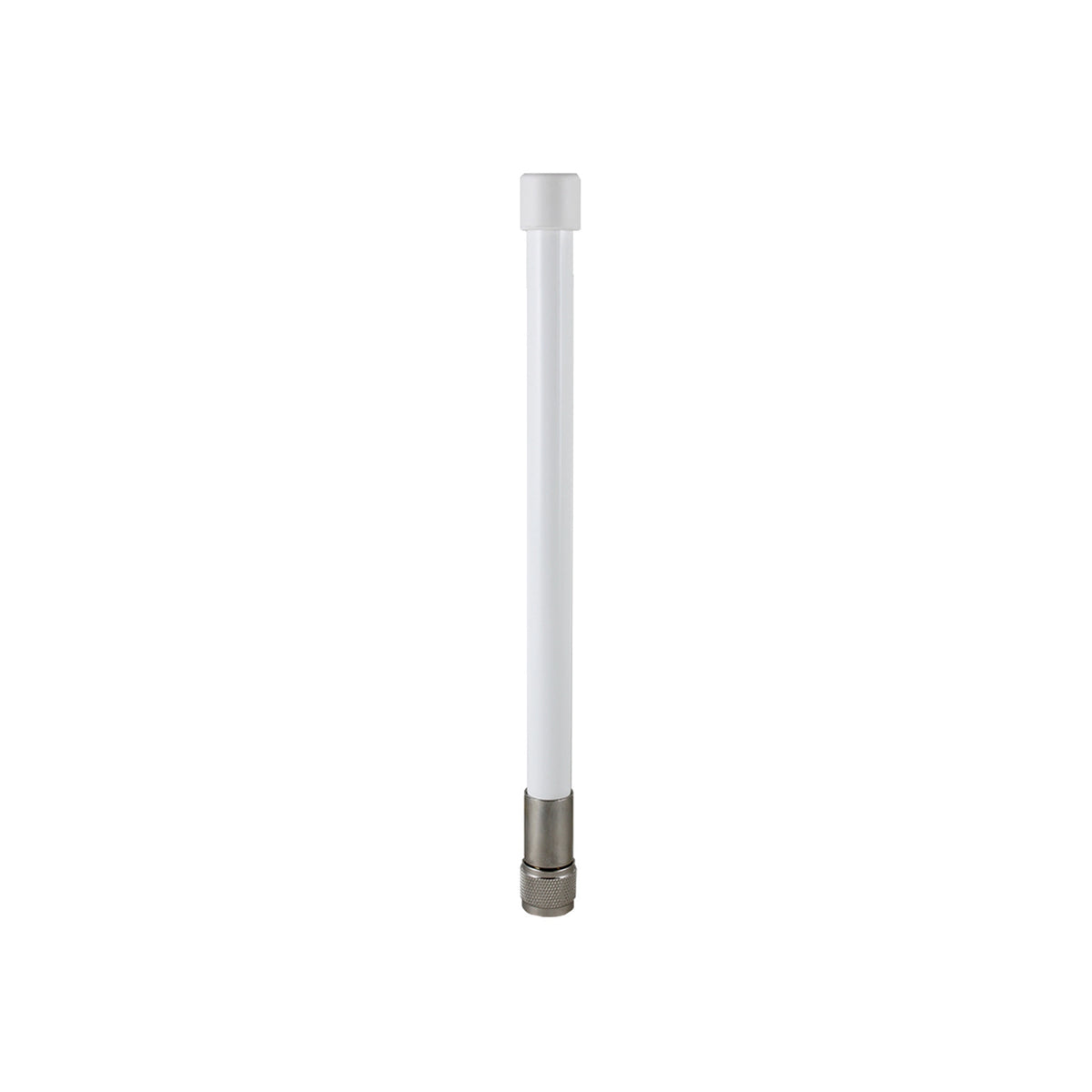

MOXA ANT-WDB-ONM-0707 WLAN Antenna

MOXA ANT-WDB-ONM-0707 WLAN Antenna

$170.00 CAD
$170.00 CAD
Sale Sold out
We have 6 in stock

Features and Benefits

  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Housing provides IP65 protection
  • -40 to 85°C operating temperature range
View full details

Description

The ANT-WDB-ONM-0707 is an omnidirectional dual-band high-gain antenna with a waterproof N-type male connector. The IP65-rated housing and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Data sheet

Specification

Antenna Characteristics
Frequency: 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 7/7 dBi
Impedance: 50 ohms
HPBW/Horizontal: 360°
V.S.W.R.: 1:2.5 max.
Power Handling: 10 W (max.)
Polarization: Vertical
Connector: N-type (male)

Physical Characteristics
IP Rating: IP65
Dimensions: Diameter: 20 mm (0.79 in), Length: 528 mm (20.79 in)
Weight: 152 g (0.34 lb)
Radome Color: White
Radome Material: Fiberglass
Installation: Straight mount

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
