Moxa

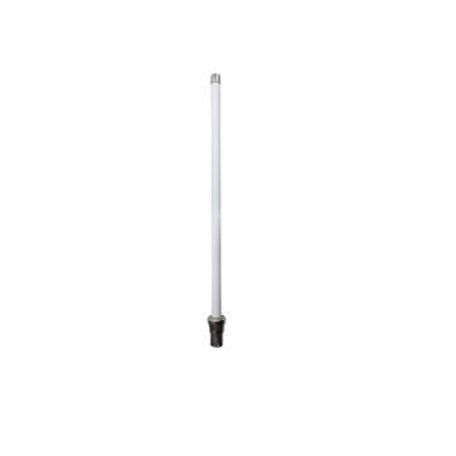

MOXA ANT-WDB-ONF-0709 WLAN Antenna

MOXA ANT-WDB-ONF-0709 WLAN Antenna

Regular price $204.00 CAD
Regular price Sale price $204.00 CAD
Sale Sold out

Features and Benefits

  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 80°C operating temperature range
View full details

Description

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Specification

Antenna Characteristics
Frequency: 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 7/9 dBi
Connector: N-type (female)
Impedance: 50 ohms
HPBW/Horizontal: 360°
V.S.W.R.: 1:2.5 max.
Power Handling: 10 W (max.)
Polarization: Vertical

Physical Characteristics
IP Rating: IP65
Dimensions: Diameter: 22 mm (0.87 in), Length: 610 mm (24.0 in)
Weight: 461 g (1.02 lb)
Radome Color: White
Radome Material: Fiberglass
Installation: Pole mount

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
