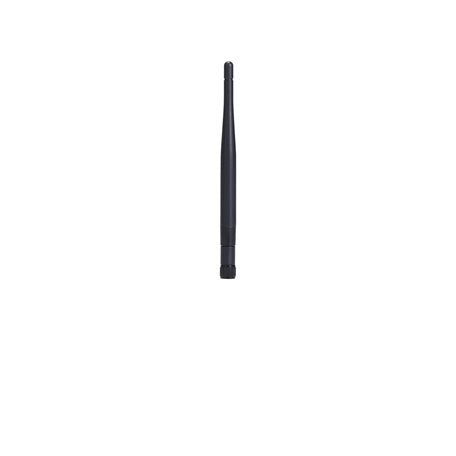

MOXA ANT-WDB-ARM-0202 WLAN ANTENNA

MOXA ANT-WDB-ARM-0202 WLAN ANTENNA

$15.00 CAD
$15.00 CAD
Sale Sold out

Features and Benefits

  • Dual-band 2.4 GHz and 5 GHz
  • 2 dBi at 2.4 GHz or 2 dBi at 5 GHz
  • Omnidirectional
  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector
View full details

Description

Introduction
The ANT-WDB-ARM-0202 is an omni-directional lightweight compact dual-band indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Data sheet

Specification

Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.825 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 2/2 dBi
Connector: RP-SMA (male)
Impedance: 50 ohms
Polarization: Linear
HPBW/Horizontal: 360°
V.S.W.R.: 2:1 max.
Power Handling: 1 W (max.)
Physical Characteristics
Weight: 9.65 g (0.02 lb)
Length: 136 mm (5.35 in)
Radome Color: Black
Radome Material: Plastic
Installation: Straight mount
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 75°C (-40 to 167°F) (package included)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
