Moxa

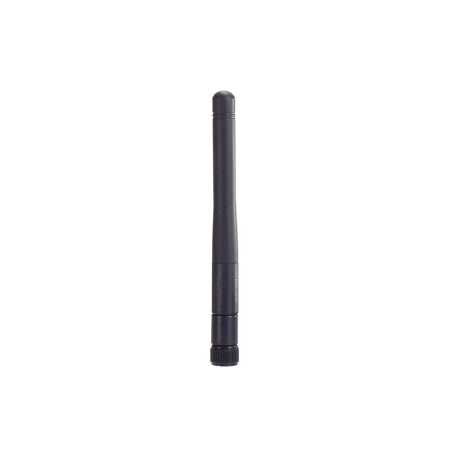

MOXA ANT-WDB-ARM-02 WLAN ANTENNA

MOXA ANT-WDB-ARM-02 WLAN ANTENNA

Regular price $24.00 CAD
Regular price Sale price $24.00 CAD
Sale Sold out
We have 3 in stock

Features and Benefits

  • Dual-band 2.4 GHz and 5 GHz
  • 2 dBi at 2.4 GHz or 2 dBi at 5 GHz
  • omni-directional
  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector
View full details

Description

The ANT-WDB-ARM-02 is an omni-directional lightweight compact dual-band indoor antenna. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 80°C.

Specification

Frequency: 2.4 to 2.5, 5.2 to 5.8 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 2/2 dBi
Connector: RP-SMA (male)
Impedance: 50 ohms
Polarization: Vertical
HPBW/Horizontal: 360°
HPBW/Vertical: 80°
V.S.W.R.: 2:1 max.
Weight: 10 g (0.02 lb)
Length: 108 mm (4.25 in)
Radome Color: Black
Radome Material: Plastic
Installation: Straight mount
Operating Temperature: -40 to 80°C (-40 to 176°F)
Storage Temperature (package included): -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty Period: 1 year
Details: See www.moxa.com/warranty
