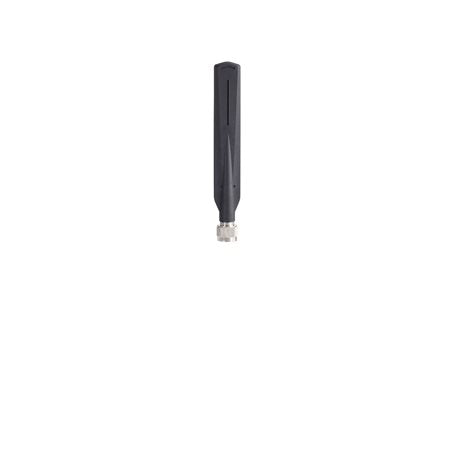

MOXA ANT-WDB-ANM-0502 WLAN ANTENNA

MOXA ANT-WDB-ANM-0502 WLAN ANTENNA

Regular price $47.00 CAD
Regular price Sale price $47.00 CAD
Sale Sold out

Features and Benefits

  • Dual-band 2.4 GHz and 5 GHz
  • 5 dBi at 2.4 GHz or 2 dBi at 5 GHz
  • Omni-directional
  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Housing provides IP67 protection
  • -40 to 80°C operating temperature
View full details

Description

Introduction
The ANT-WDB-ANM-0502 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.

Specification

Antenna Characteristics

Frequency: 2.4 to 2.5, 5.1 to 5.9 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 5/2 dBi
Connector: N-type (male)
Impedance: 50 ohms
Polarization: Linear
HPBW/Horizontal: 360°
HPBW/Vertical: 65°
V.S.W.R.: 1:2 max.
Power Handling: 2 W (max.)
Physical Characteristics

Weight: 72 g (0.16 lb)
Length: 189.4 mm (7.46 in)
Diameter: 26 mm (1.02 in)
IP Rating: IP67
Radome Color: Black
Radome Material: NY66
Installation: Straight mount
Environmental Limits

Operating Temperature: -40 to 80°C (-40 to 176°F)
Storage Temperature: -40 to 80°C (-40 to 176°F) (package included)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty

Warranty Period: 1 year
Details: See www.moxa.com/warranty
