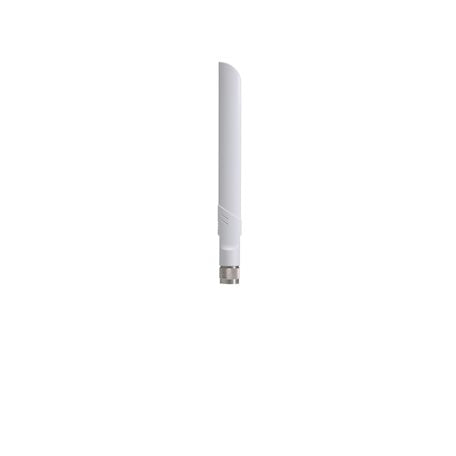

MOXA ANT-WDB-ANM-0306 WLAN ANTENNA

MOXA ANT-WDB-ANM-0306 WLAN ANTENNA

$64.00 CAD
$64.00 CAD
Sale Sold out

Features and Benefits

  • Dual-band 2.4 GHz and 5 GHz
  • 3 dBi at 2.4 GHz and 6 dBi at 5 GHz
  • Omnidirectional
  • Outdoor waterproof N-type connector
  • Lightweight
  • Compact form factor
  • Housing provides IP67 protection
  • -40 to 75°C operating temperature
View full details

Description

Introduction
The ANT-WDB-ANM-0306 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 75°C make it suitable for outdoor use.

Data sheet

Specification

Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.825 GHz
Antenna Type: Omni-directional
Typical Antenna Gain: 3.5/6 dBi
Connector: N-type (male)
Impedance: 50 ohms
Polarization: Linear
HPBW/Horizontal: 360°
V.S.W.R.: 2:1 max.
Power Handling: 1 W max.
Physical Characteristics
IP Rating: IP67
Dimensions:
Diameter: 22 mm (0.87 in)
Length: 215 mm (8.46 in)
Weight: 68.9 g (0.15 lb)
Radome Color: White
Radome Material: PC-9330
Installation: Straight mount
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 75°C (-40 to 167°F) (package included)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
