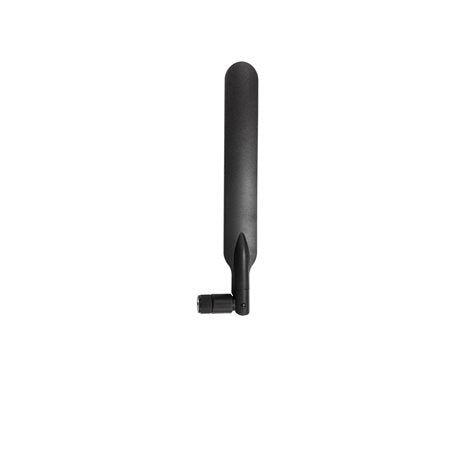

MOXA ANT-LTEUS-ASM-01 Cellular Antenna

MOXA ANT-LTEUS-ASM-01 Cellular Antenna

$47.00 CAD
$47.00 CAD
Sale Sold out

Features and Benefits

  • GSM/GPRS/EDGE/UMTS/HSPA/LTE
  • 1 dBi
  • omnidirectional
  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported
View full details

Description

The ANT-LTEUS-ASM-01 is a part of ANT-LTEUS-ASM-01 SERIES and an omnidirectional lightweight compact antenna suitable for GPRS/EDGE/UMTS/HSPA/LTE bands. The antenna provides a gain of 2 dBi and is designed to operate in temperatures from -30 to 75°C.

Place your order with confidence for the ANT-LTEUS-ASM-01 SERIES Cellular Antenna at a competitive price, perfect for industrial solutions, by purchasing online or inquiring through our website. Our customer-focused approach ensures a straightforward buying process.

Data sheet

Specification

Antenna: Antenna Characteristics
Frequency: 700/850/900/1700/1900/2600 MHz
Antenna Type: Omni-directional
Antenna Gain: 1 dBi @ 698 to 960 MHz, 2 dBi @ 1710 to 1990 MHz, 2 dBi @ 2300 to 2400 MHz, 2 dBi @ 2500 to 2700 MHz
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, Vertical

Antenna: Physical Characteristics
Weight: 26 g (0.06 lb)
Operating Temperature: -30 to 75°C (-22 to 167°F)
Storage Temperature: -30 to 75°C (-22 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
