Moxa

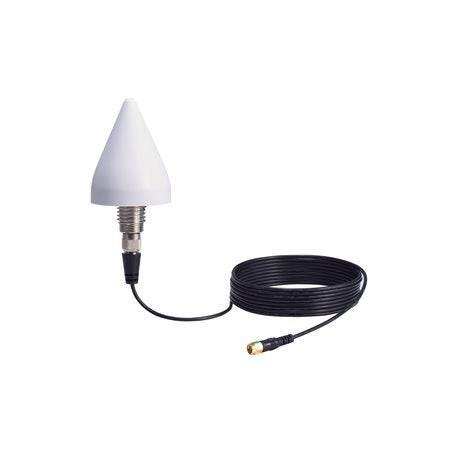

MOXA ANT-GNSS-CSM-02-3m GNSS Antenna

MOXA ANT-GNSS-CSM-02-3m GNSS Antenna

Regular price $400.00 CAD
Regular price Sale price $400.00 CAD
Sale Sold out

Features and Benefits

  • Frequency: 1561 to 1606 MHz
  • Antenna Type: Omnidirectional
  • Antenna Gain: 2 dBic
  • Connector Type: SMA (male)
  • Waterproof housing to protect against high-temperature and high-pressure water jets
  • High-gain antenna to enhance performance
  • Cone-shaped design to reduce the effects of snow and dust coverage
View full details

Description

MOXA ANT-GNSS-CSM-02-3m Introduction
The ANT-GNSS-CSM-02-3m Series is an omnidirectional cone-shaped antenna suitable for GNSS applications. The antenna provides a gain of 2 dBic and is designed to operate in temperatures ranging from -40 to 85°C.

You can place an order online for MOXA ANT-GNSS-CSM-02-3m GNSS Antenna and enjoy the convenience of delivery to your specified location at a reasonable price. Our dedicated team in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) is ready to assist with any inquiries and ensure a smooth buying process.

Specification

Frequency Range: 1561 MHz to 1606 MHz
Antenna Type: Omni-directional
Typical Antenna Gain:
Without low noise amplifier:
-0.5 dBic @ 1561 MHz (BDS)
2 dBic @ 1575.42 MHz (GPS)
0.6 dBic @ 1598 to 1606 MHz (GLONASS)
With low noise amplifier: 35 dB
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Vertical Linear
V.S.W.R.: < 2.0 (max.)
Physical Characteristics
Weight: 125 g (0.28 lb) without cable and connector
Dimensions: φ 60.5 (D) x 79.2 (H) mm
Radome Color: White
Radome Material: Plastic
Installation: Screw mount
Cable: RG-174
Cable Length: 3 m
IP Rating: IP67
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing at 30°C)
Warranty
Warranty Period: 1 year
