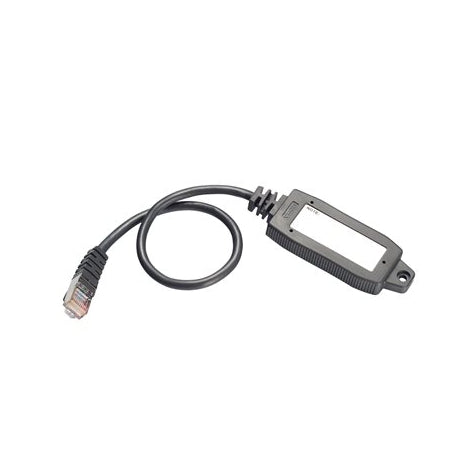

MOXA ABC-01 Configuration Backup and Restoration Tool

MOXA ABC-01 Configuration Backup and Restoration Tool

$159.00 CAD
$159.00 CAD
Sale Sold out

Features and Benefits

  • Rugged, reliable design
  • RS-232 RJ45 console port connection
  • Load the system configuration automatically after the system reboot
  • Supports Moxa's managed Ethernet switches and wireless APs/bridges/clients products
  • Plug-and-Play system configuration backup and restoration
View full details

Description

The ABC-01 Series automatic backup configurators are designed for system backup and restoration to enhance maintenance efficiency and reduce system downtime. The ABC-01 Series can be used to save and load the configuration of Moxa’s Ethernet switches and AWK wireless APs/bridges/clients through the RS-232 console port. The ABC-01 Series makes it easier to manage the backup of system parameters and perform configurations.

You can buy online at the lowest price and enjoy the benefits of a low-cost and on-time delivery service.

Data sheet

Specification

Configuration backup tool: Interface
Connector: RJ45
Configuration backup tool: Basic Operation
Storage Capacity: 128 KB Flash
Configuration backup tool: Power Parameters
Input Voltage: 3 to 5 VDC (through the RS-232 port's RTS signal)
Configuration backup tool: Physical Characteristics
Housing: PVC molding
IP Rating: IP40
Dimensions: 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
Weight: 50 g (0.11 lb)
Installation: M4 screws (<4 mm)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS
