Moxa

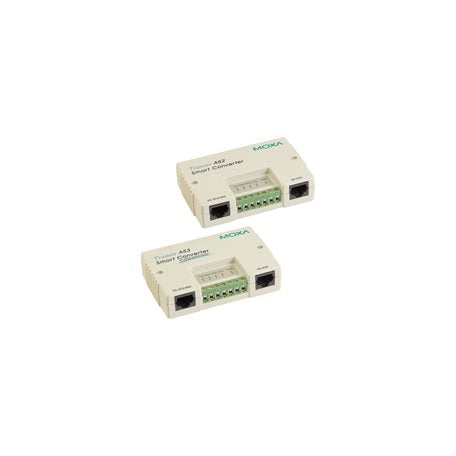

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$99.00 CAD
$99.00 CAD
Sale Sold out

Features and Benefits

  • ADDC™ (Automatic Data Direction Control) RS-485 data control
  • Automatic baudrate detection
  • RS-422 hardware flow control: CTS, RTS signals
  • LED indicators for power and signal status
  • RS-485 multidrop operation, up to 32 nodes
  • 2 kV isolation protection
  • Built-in 120-ohm termination resistors
View full details

Description

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend the RS-232 transmission distance and increase networking capability.

You can also find the A53-DB9F w/ Adapter and A52-DB9F w/o Adapter models in the TRANSIO A52/A53 SERIES.

Enjoy online features to order the MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter with a price match guarantee, and experience seamless, cost-effective delivery service.

Data sheet

Specification

Serial Converters: RS-232 port specifications
Serial connection type: RJ-45
Serial Converters: RS-422/RS-485 port specifications
Serial connection type: RJ-45 and 5 terminal inputs
Signal: TxD+, TxD-, RxD+, RxD-, GND, Data+, Data-, GND
RS-485 Flow Control: ADDC, RTS, CTS
Serial Converters: Converter Specifications
Data transfer speed (Baudrate): 0.05Kbps to 230.4Kbps
Protection against electrostatic discharge: 25KV
Serial Converters: Power Requirements
Type of power input: 2 terminal input
Input Power: 9V AC to 30V AC, 0.35A
Power Consumption: 9V DC, 0.285A
Protection against reverse voltage: No
Protection against overflow: Yes: Protection against two short signals
Serial Converters: Physical Characteristics
Dimensions: 90x60x21mm
Standards and Certifications: FCC Class A, CE Class A
Housing: ABS
Storage Temperature: -20 to 75 °C
Operation Humidity: 5% to 95% RH non-condensing
