Moxa

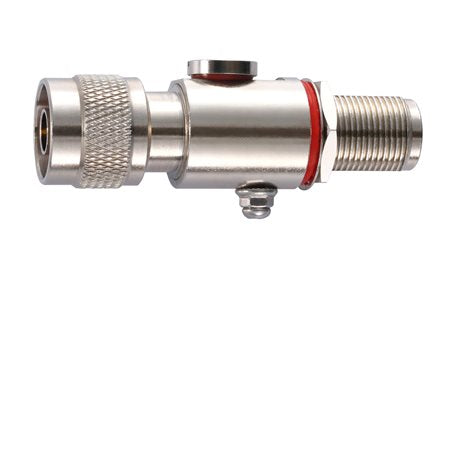

MOXA A-SA-NMNF-02 Surge Arrester

MOXA A-SA-NMNF-02 Surge Arrester

Regular price $112.00 CAD
Regular price Sale price $112.00 CAD
Sale Sold out

Features and Benefits

  • N-type connector
View full details

Description

The A-SA-NFNF-02 Series is a N-type (female) to N-type (female) surge arrester to help protect connected electrical devices from power surges.

You can also find the A-SA-NFNF-02 model in the Surge Arresters.

Specification

Physical Characteristics
Frequency: 0 to 6 GHz
V.S.W.R.: 1:1.5 @ 0-6 GHz
Insertion Loss: 0.5 dB (max.)
DC Breakdown Voltage: 230 V ± 20% @ 100 V/S
Impulse Breakdown Voltage: < 700 V @ 1k V/μs
Surge Discharge Current: 10 kA @ 8/20 μs
Initial Insulation Resistance: ≥ 1000 mΩ
Electrode Capacitance: 1.5 pF

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
